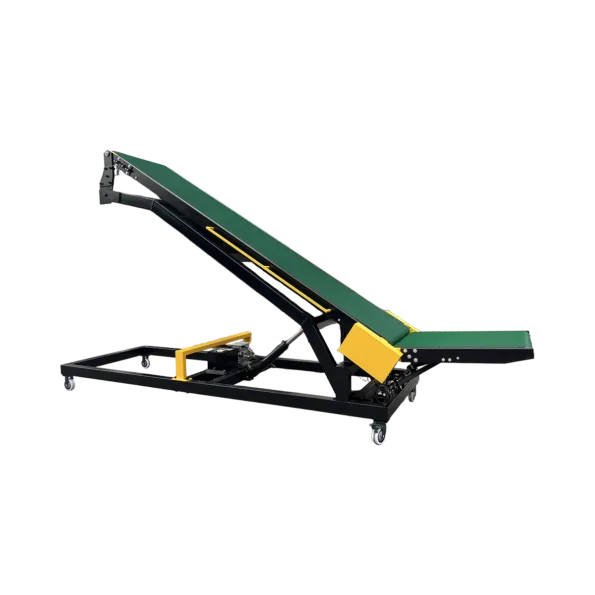

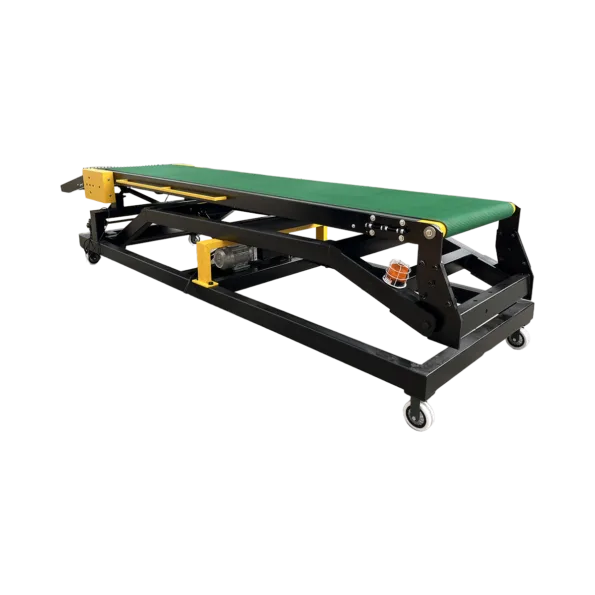

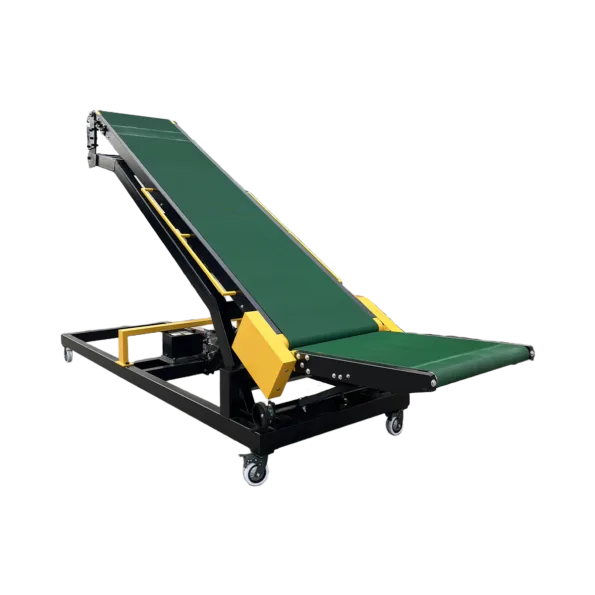

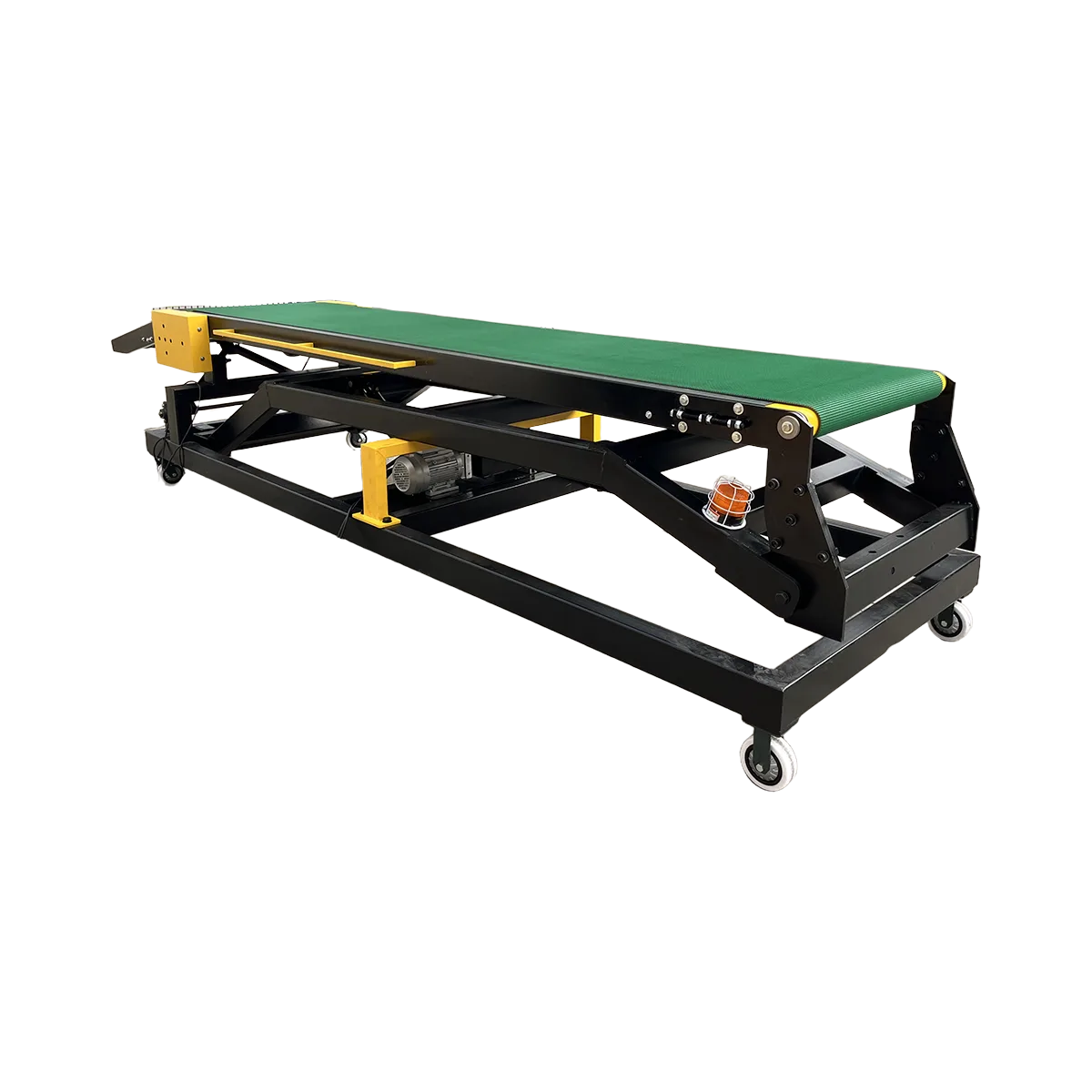

Hydraulic Conveyor – Large – 7900 mm Length

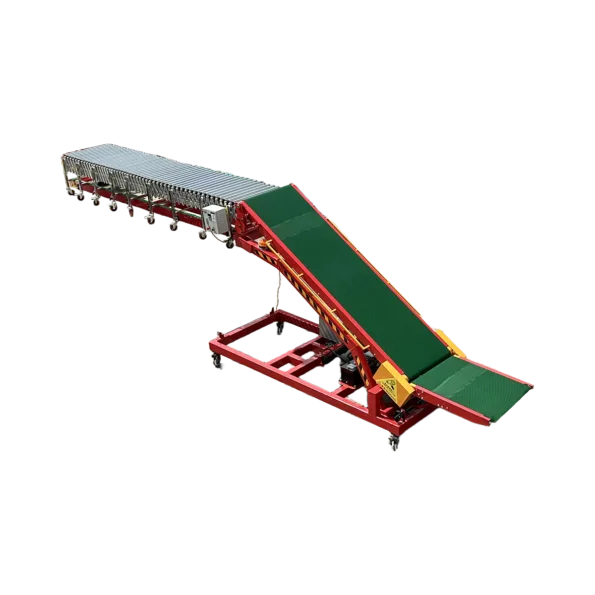

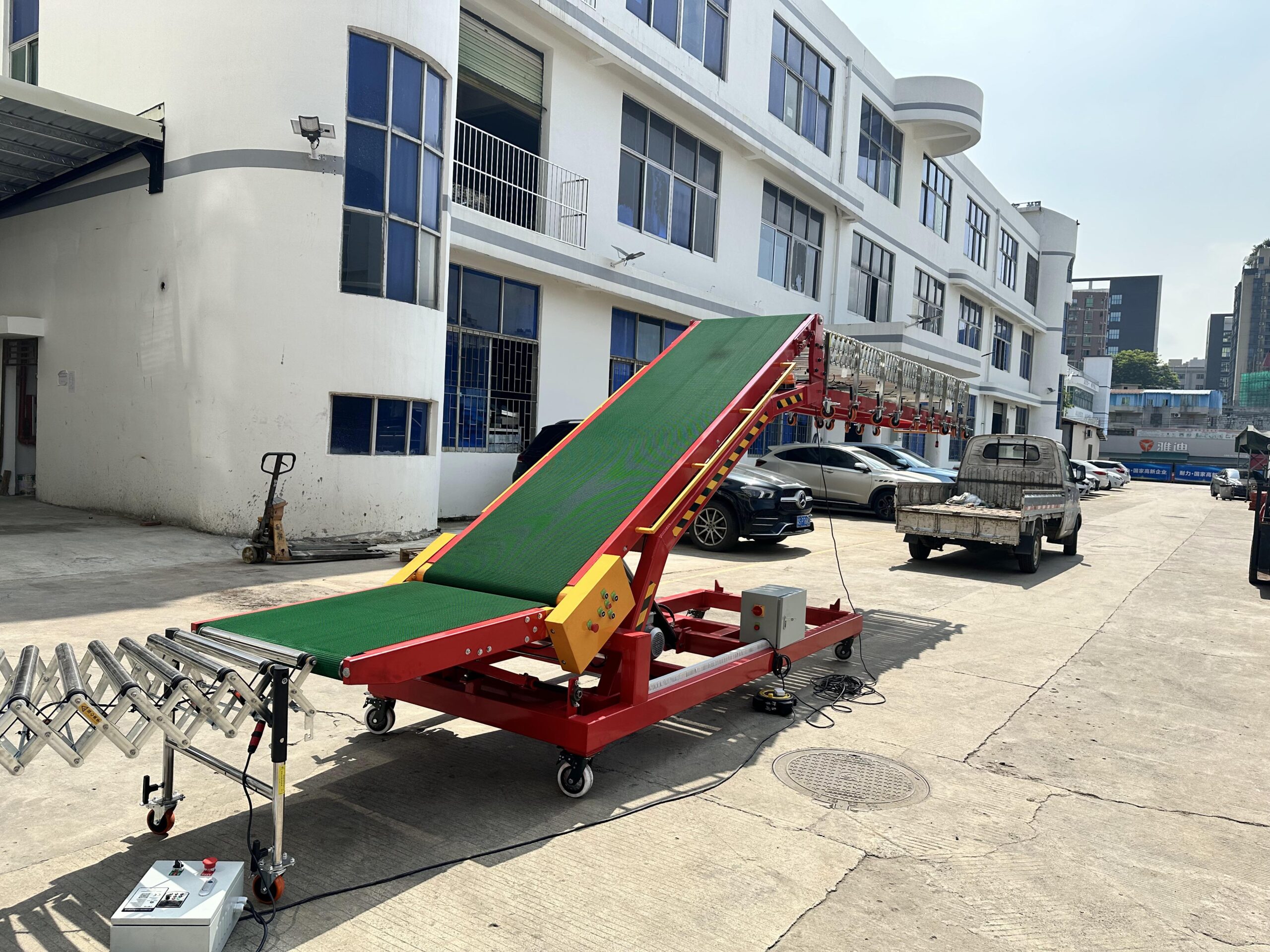

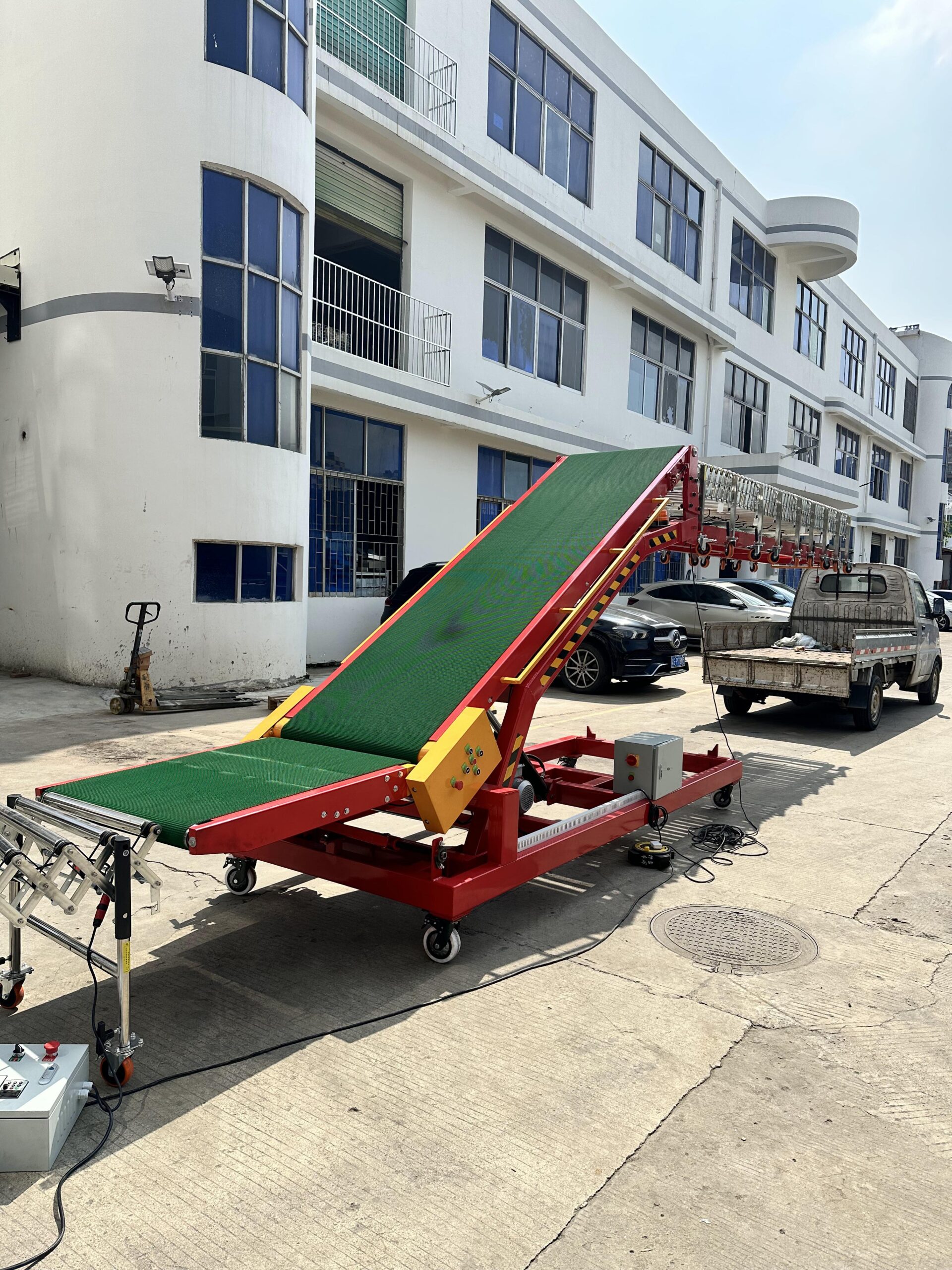

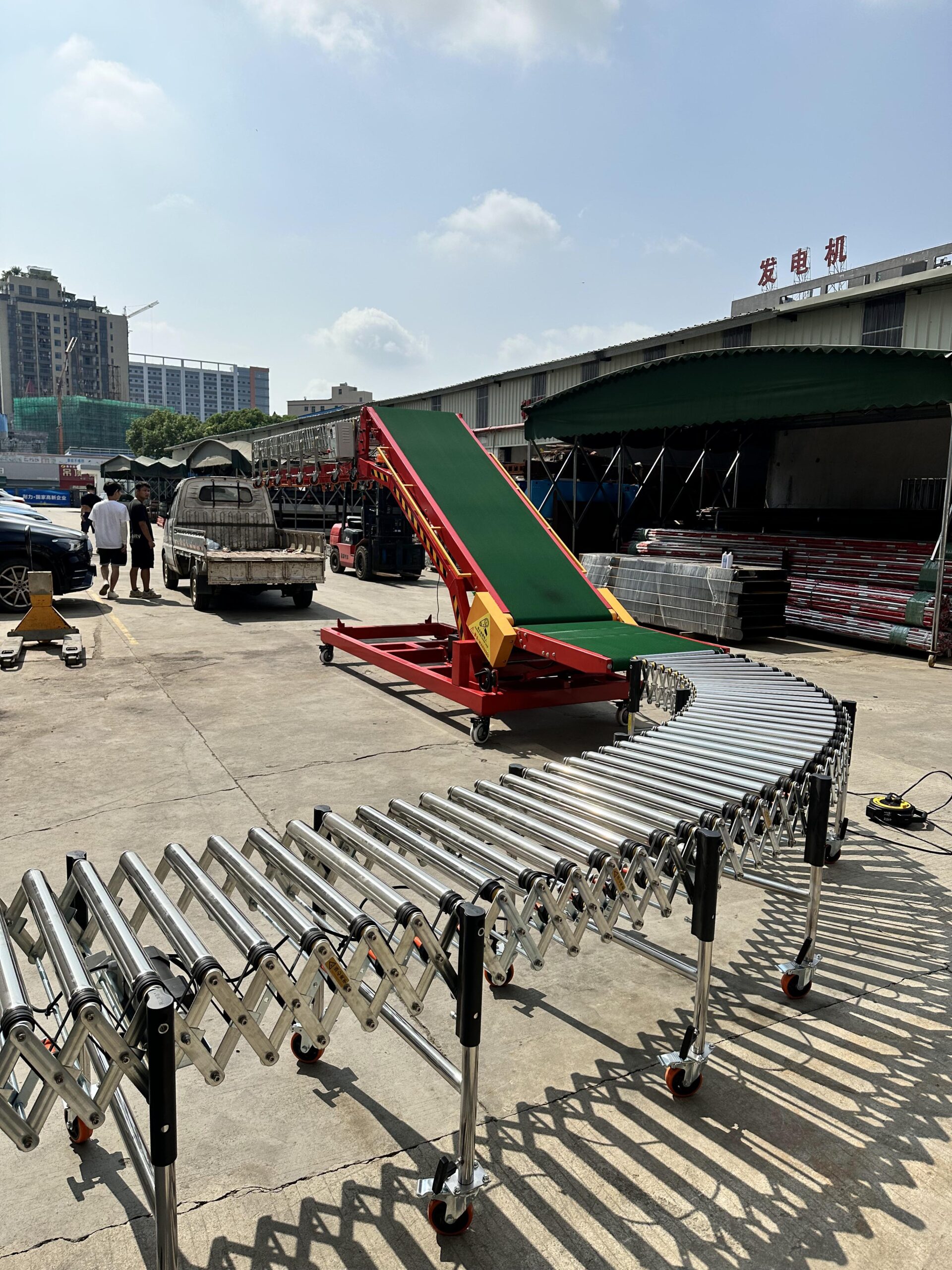

The Hydraulic Conveyor – Large – 7900 mm Length is designed for loading and unloading large containers and trucks, featuring a 12-meter roller conveyor extension at the front. With a load capacity of 80 kg/m and a speed of 30 m/min, it ensures efficient material handling. Built with Q345 steel and equipped with a PVC anti-slip belt, it provides durability and stability. The hydraulic system enables smooth lifting and lowering, making it perfect for large-scale operations.
Propduct Model
Current Model
Key Parameters
Minimun Speed
0.3
m/min
Maximun Speed
30
m/min
Load Capacity
80
kg/m²
Machine Length
Overall Length
7900
mm

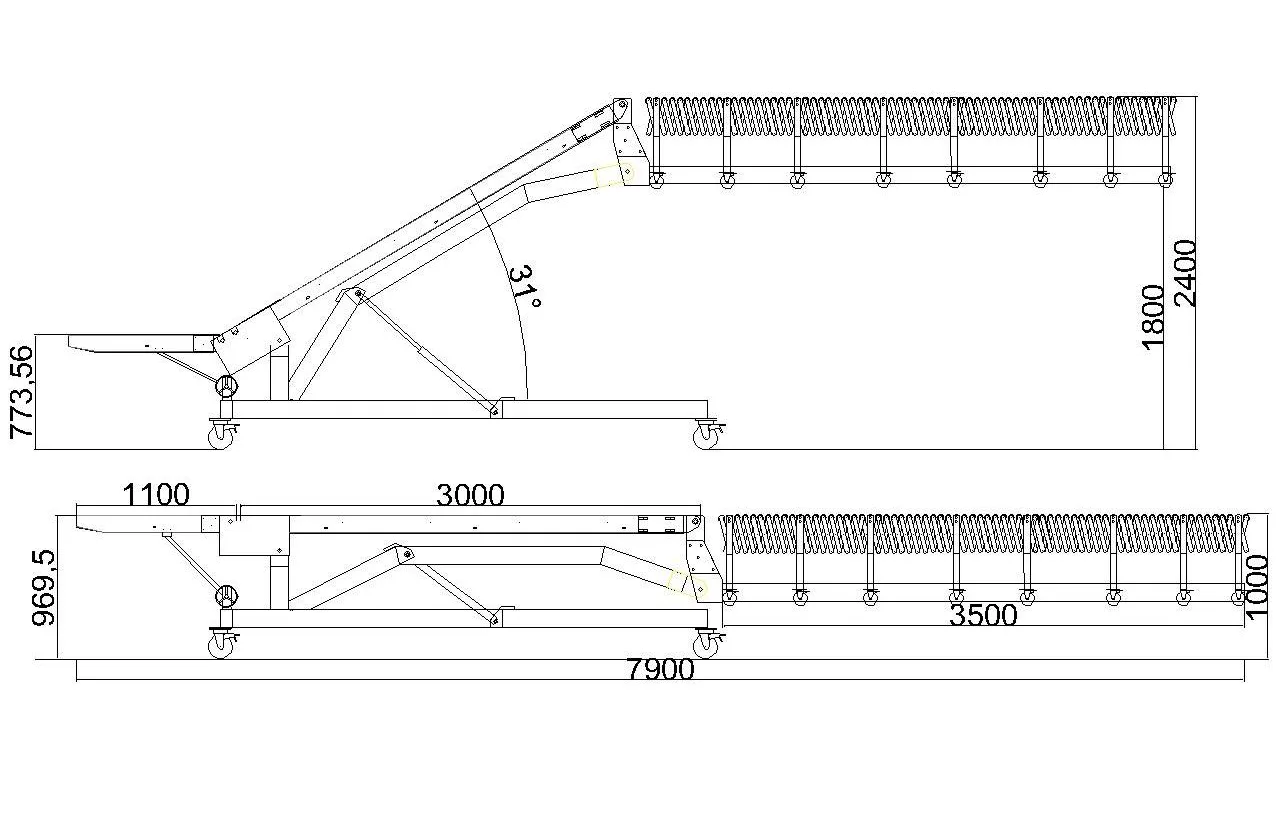

Dimension Drawing
Equipment Parameters
| Parameter Name | Specification |
| Overall Machine Length | 7900 mm |
| Climbing Platform Length | 3000 mm |
| Lower Platform Length | 1100 mm |
| Roller Frame | 3500 mm |
| Load Capacity | 80 kg/m |
| Speed | 30 m/min |
| Width | 600 mm/800 mm |
| Roller Diameter | Drive: 78 mm Idle: 78 mm |
| Conveyor Body | Diameter: ≥ 3.0 mm Material: Q345 Process: Surface electrostatic spray treatment |
| Equipment Frame | Section Dimension: ≥ 120*80 Thickness: ≥ 5.0 mm Material: Q235B14# Process: Surface electrostatic spray treatment |
Accessories Parameters
| Parameter Name | Specification |
| Belt Operation | 750 W 50 Hz 220/380 V |
| Inverter Model | AS2-107 1 HP 1.5 kW 220/380 V |
| Hydraulic Pump | YS90L-4 50 Hz 2.2 kW 220/380 V |
| Hydraulic Cylinder | Outer diameter: 95 mm Shaft: 80 mm Thrust: 5 tons |
| Oil Pipe Material | SAE Standard Double-layer Fiber Hydraulic Pipe 53MPa Pressure Resistance |
| Belt Material | PVC 5.0mm Black Grass Pattern Anti-Slip Belt (Wear-resistant) |
| Drive Mode | Gear Engagement (Standard) |
| Electrical Control Box | Compliant with relevant national standards |
| Control Panel | Forward/Reverse Lift/Lower Emergency Stop |
| Electrical Components | Leakage Protection, AC Contactor (Domestic Brand) |
| Heavy-Duty Casters | Wheel width 50mm, Height 200mm, Full Brake, Designed for Load Requirements |
Other Parameters
| Compatible Products for Large Hydraulic Conveyor Extension | ||
| Product Name | Number of Sections (Max) | Maximum Extended Length |
| Gravity Skate Wheel Conveyor | 9 sections | 18.9 meters |
| 38mm Gravity Roller Conveyor | 7 sections | 13.6 meters |
| 50mm Gravity Roller Conveyor | 8 sections | 12 meters |
| Multi-wedge Belt Driven Roller Conveyor (2 Meters) | 5 sections | 10 meters |
| O-shaped Belt Driven Roller Conveyor | 8 sections | 12 meters |
| Rubber Roller Conveyor | 7 sections | 7.7 meters |
Warranty
| Parameter Name | Duration |
| Machine Warranty | 1 Year |
