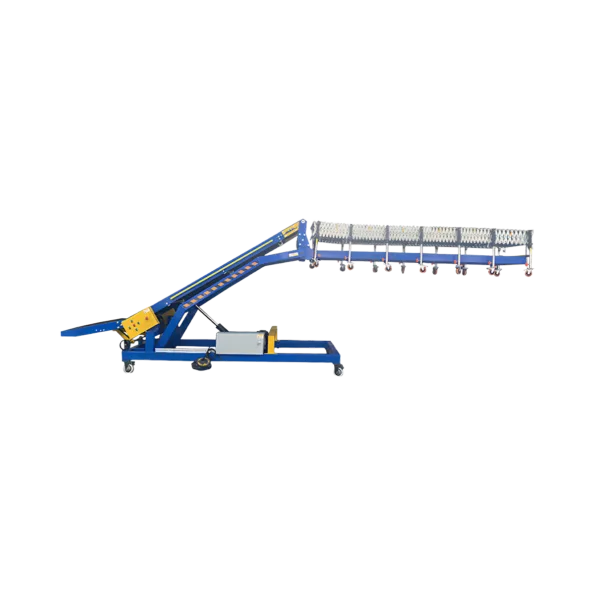

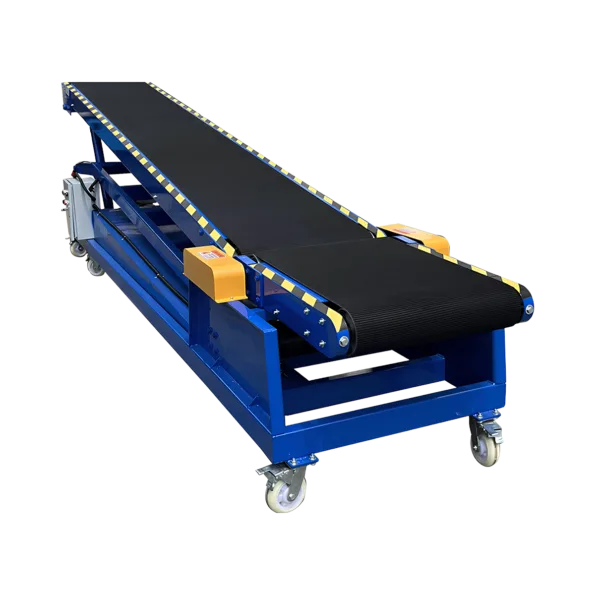

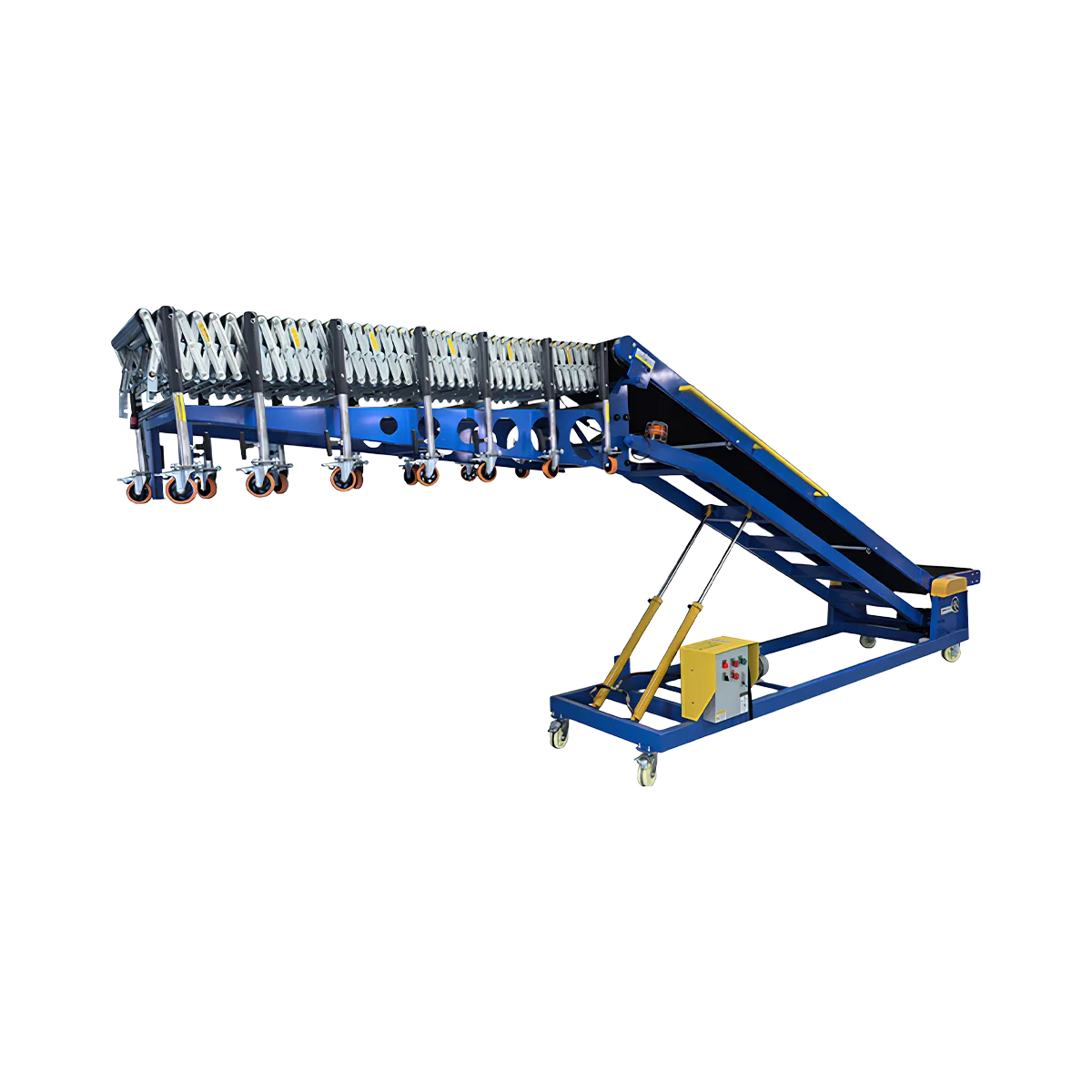

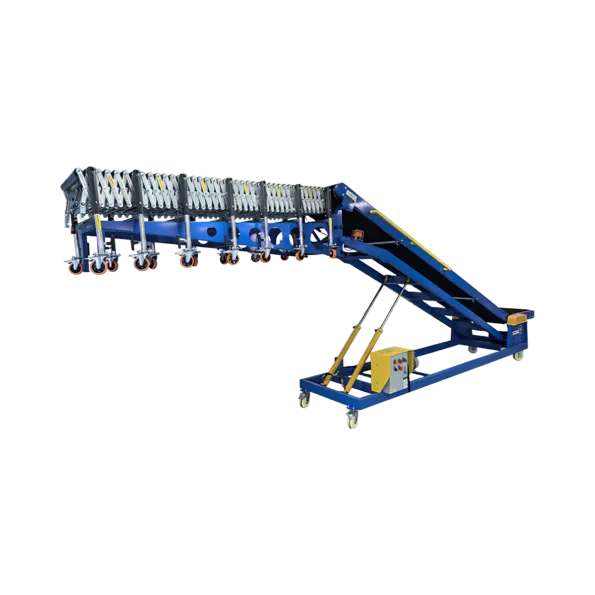

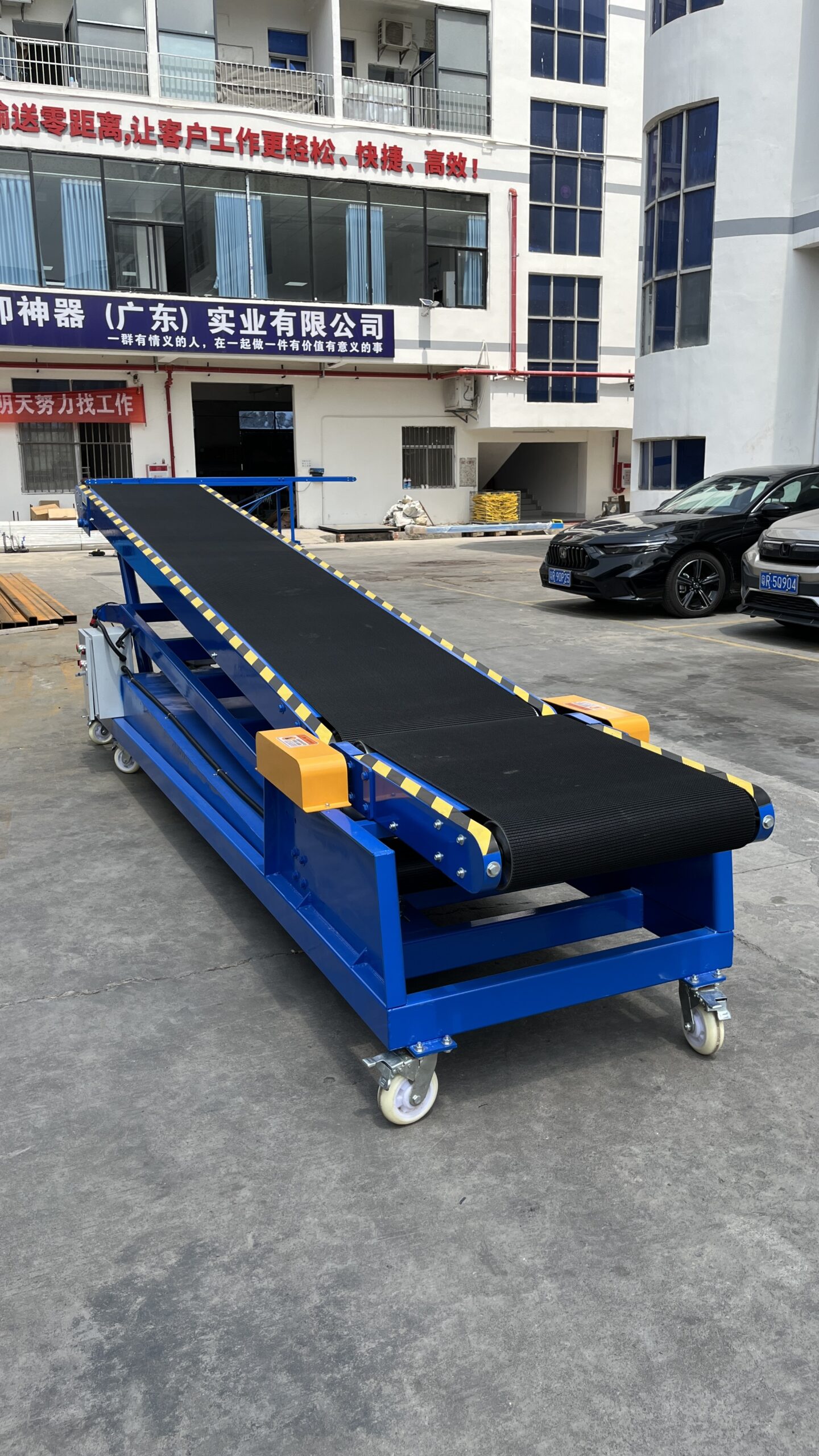

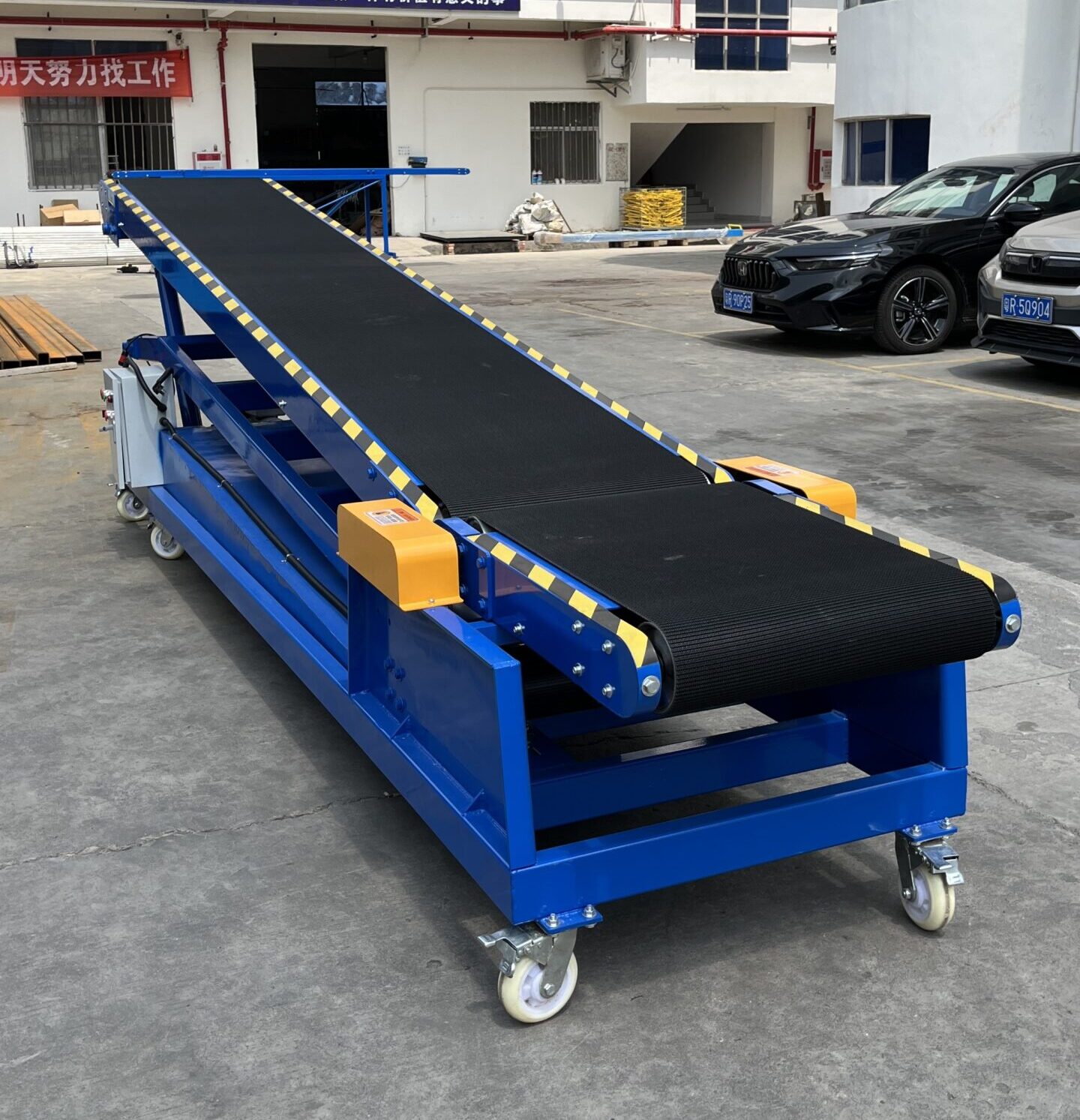

Hydraulic Conveyor – Medium – 7000 mm Length

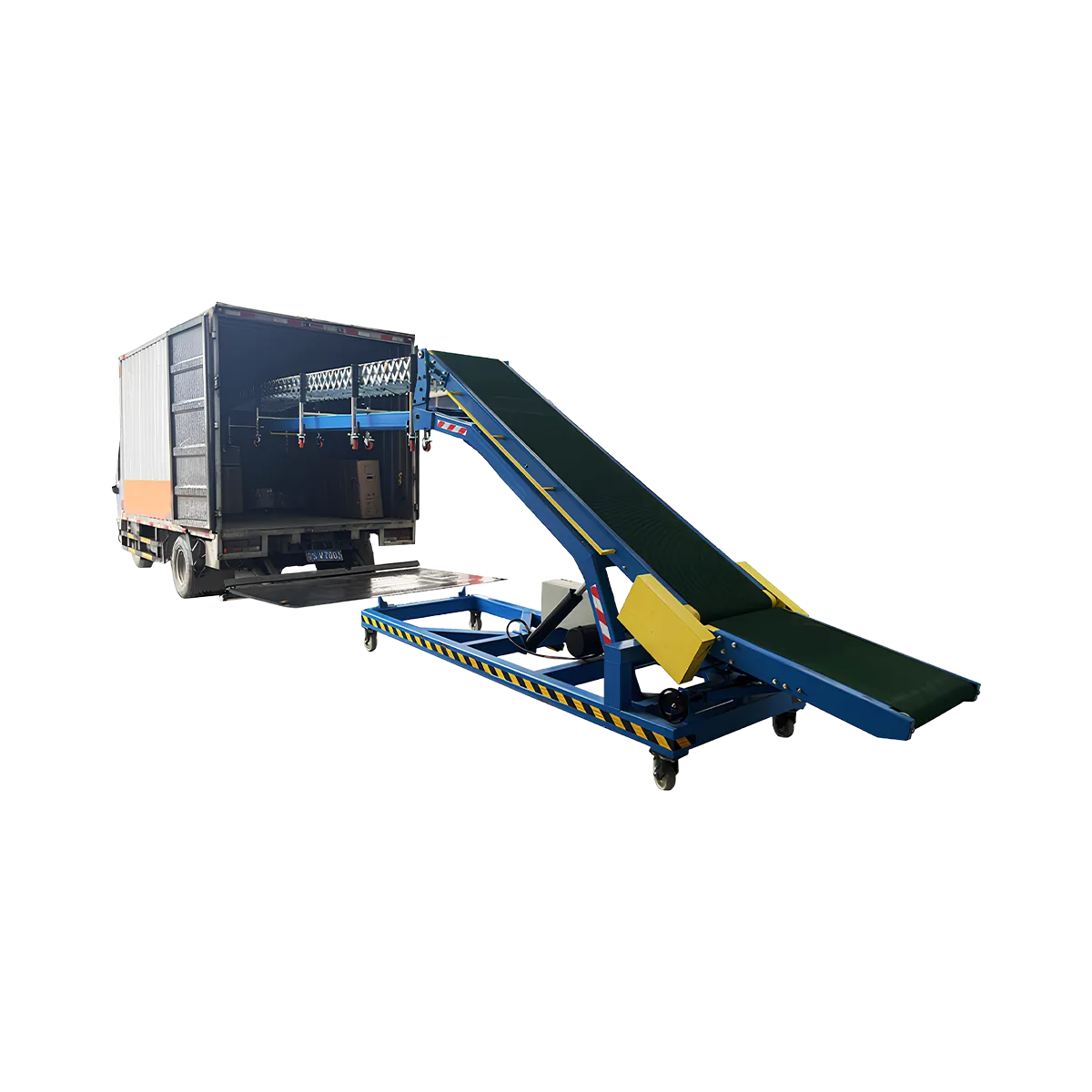

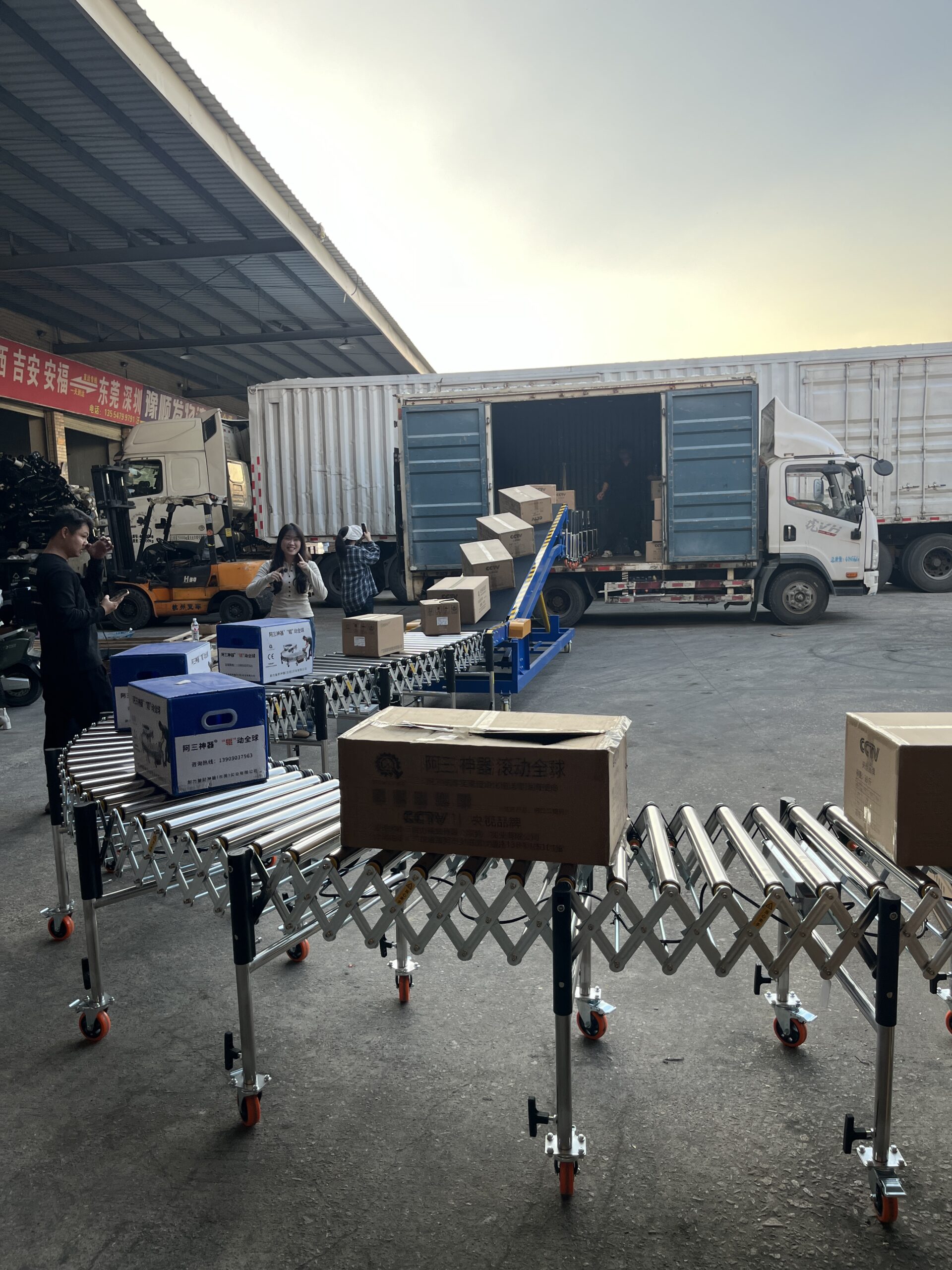

The Hydraulic Conveyor – Medium – 7000 mm Length is designed for loading and unloading containers and trucks, featuring a 10-meter roller conveyor extension at the front. With a load capacity of 80 kg/m and 30 m/min speed, it offers efficient and reliable material handling. The conveyor is built with Q345 steel for durability, equipped with a PVC anti-slip belt, and powered by a hydraulic system for smooth lifting and lowering. This model is ideal for businesses seeking a robust, space-efficient solution for large-scale loading and unloading operations.
Propduct Model
Current Model
Key Parameters
Minimun Speed
0.3
m/min
Maximun Speed
30
m/min
Load Capacity
80
kg/m²
Machine Length
Overall Length
7000
mm

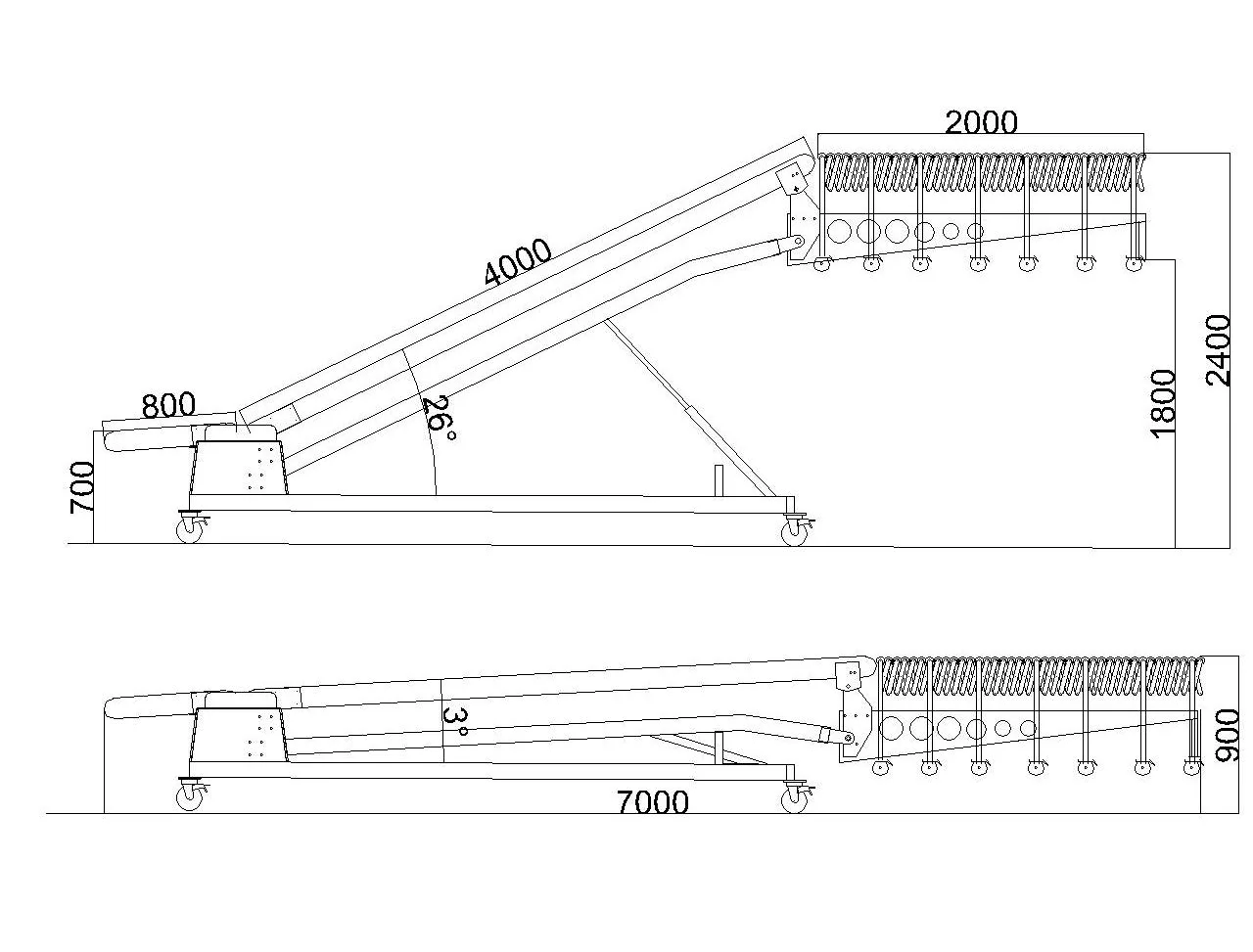

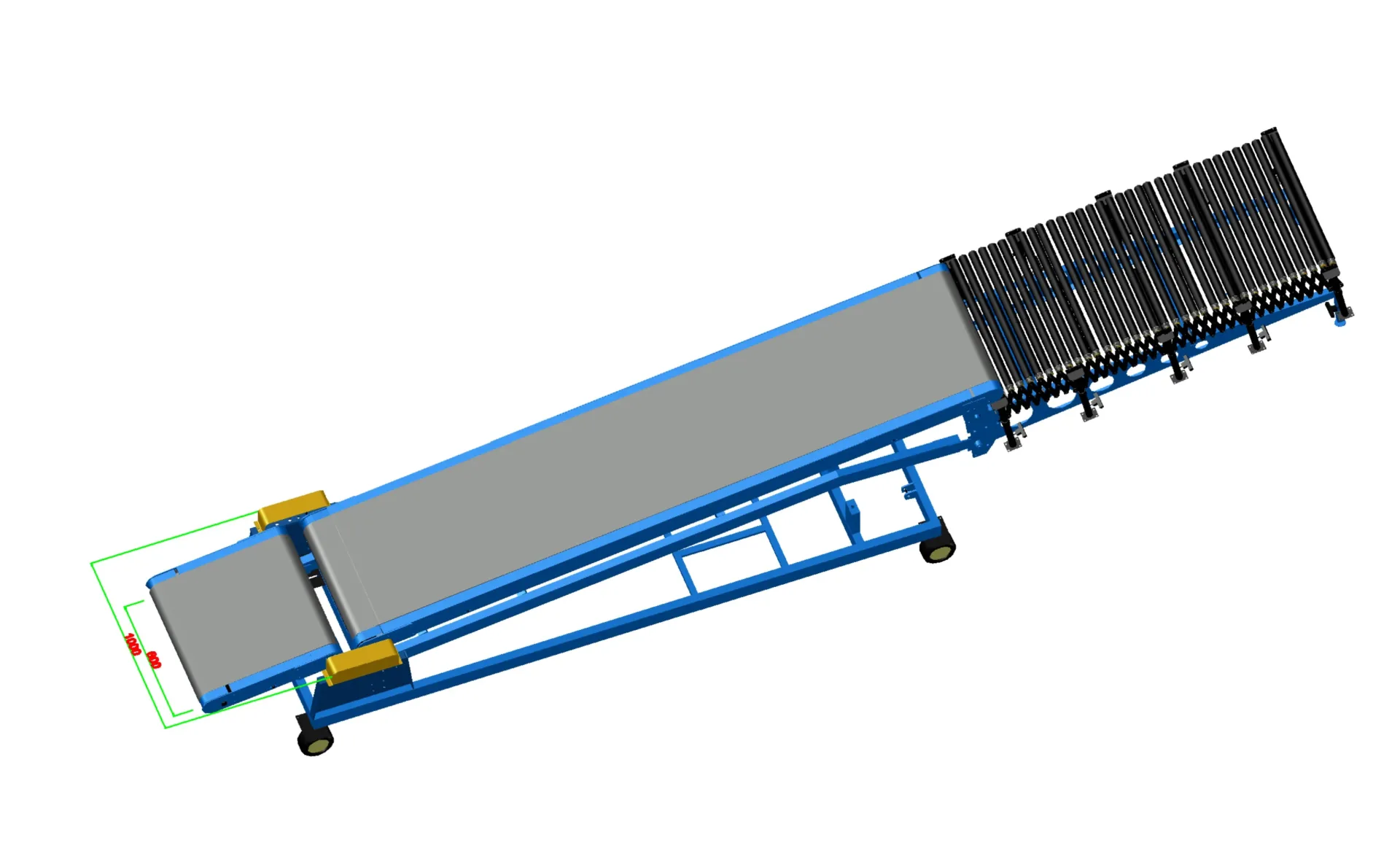

Dimension Drawing
Equipment Parameters
| Parameter Name | Specification |
| Overall Machine Length | 7000 mm |
| Climbing Platform Length | 4000 mm |
| Lower Platform Length | 800 mm |
| Load Capacity | 80 kg/m |
| Speed | 30 m/min |
| Width | 600 mm/800 mm |
| Roller Diameter | Drive: 130 mm Idle: 45 mm |
| Axis Core Diameter | Drive: 35 mm Idle: 15 mm |
| Conveyor Body | Thickness: ≥ 3.0 mm Material: Q345 Process: Surface electrostatic spray treatment |
| Equipment Frame | Thickness: ≥ 3.0 mm Material: Q235B14# Process: Surface electrostatic spray treatment |
Accessories Parameters
| Parameter Name | Specification |
| Belt Operation | 750 W 50 Hz 220/380 V |
| Inverter Model | AS2-107 1HP 1.5 kW 220/380 V |
| Hydraulic Pump | YS90L-4 220/380V |
| Hydraulic Cylinder | Outer diameter: 60 mm Shaft diameter: 28 mm Travel: 700 mm Thrust: 5 tons |
| Oil Pipe Material | SAE Standard Double-layer Fiber Hydraulic Pipe 53 MPa Pressure Resistance |
| Belt Material | PVC 5.0 mm Black Grass Pattern Anti-Slip Belt (Wear-resistant) |
| Drive Mode | Gear Engagement (#60 Chai) |
| Electrical Control Box | Compliant with relevant national standards |
| Control Panel | Forward/Reverse Lift/Lower Emergency Stop |
| Electrical Components | Leakage Protection, AC Contactor (Domestic Brand) |
| Heavy-Duty Casters | Wheel width 50mm, Height 200mm, Full Brake, Designed for Load Requirements |
Other Parameters
| Compatible Products for Large Hydraulic Conveyor Extension | ||
| Product Name | Number of Sections (Max) | Maximum Extended Length |
| Gravity Skate Wheel Conveyor | 5/6 sections | 10.5/12.6 meters |
| 38mm Gravity Roller Conveyor | 4/6 sections | 6.8/10.2 meters |
| 50mm Gravity Roller Conveyor | 3/4 sections | 4.5/6 meters |
| Multi-wedge Belt Driven Roller Conveyor (2 Meters) | 3/5 sections | 6/10 meters |
| O-shaped Belt Driven Roller Conveyor | 4/5 sections | 6/7.5 meters |
| Rubber Roller Conveyor | 4/5 sections | 4.4/5.5 meters |
| Conveyor Width and Weigth | |
| Width | Weight |
| 600 mm | 540 kg |
| 800 mm | 650 kg |
Warranty
| Parameter Name | Duration |
| Machine Warranty | 1 Year |
