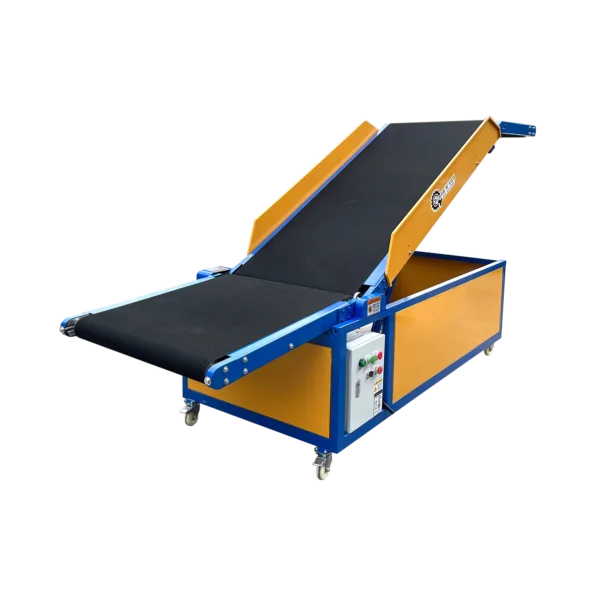

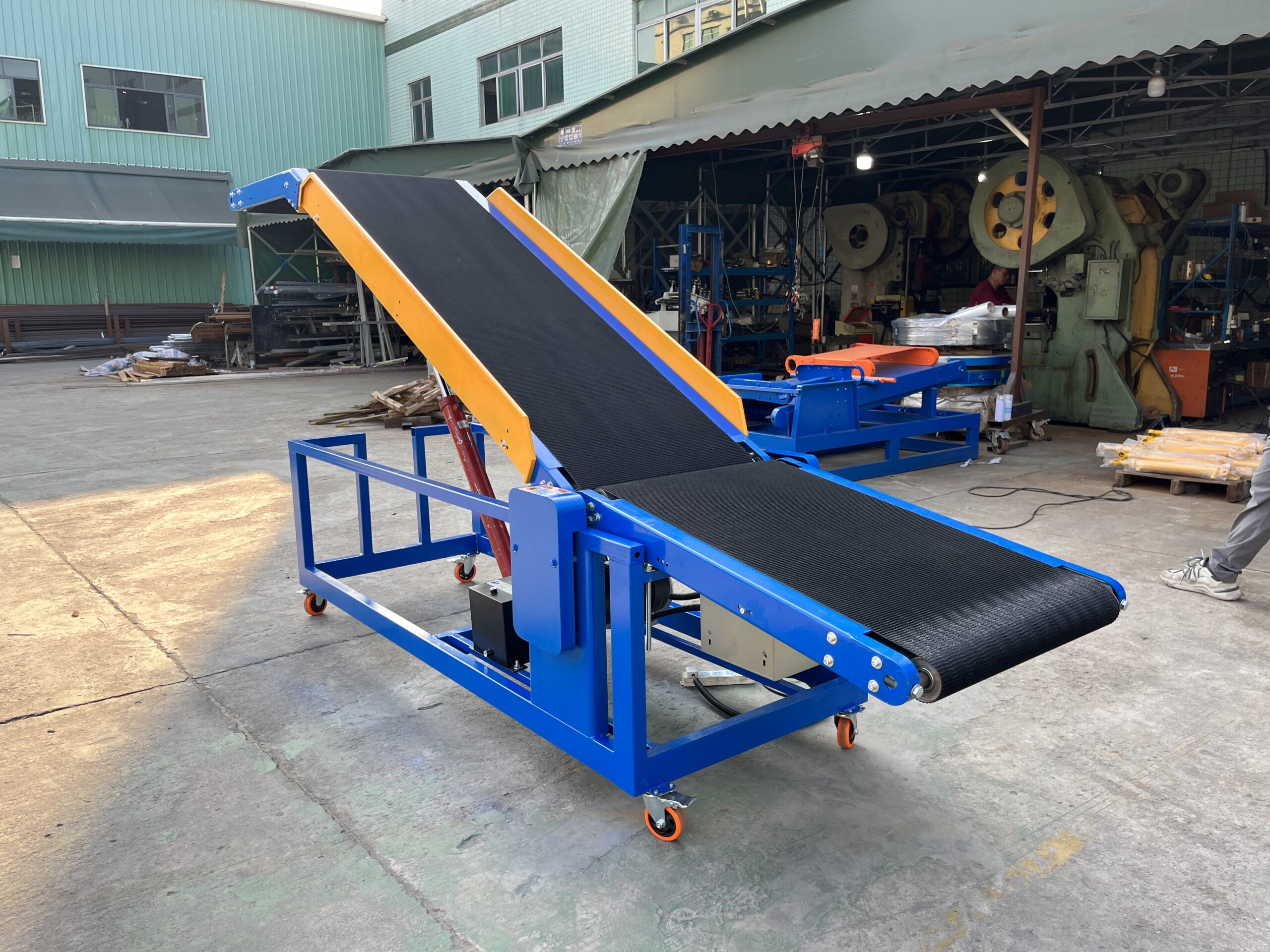

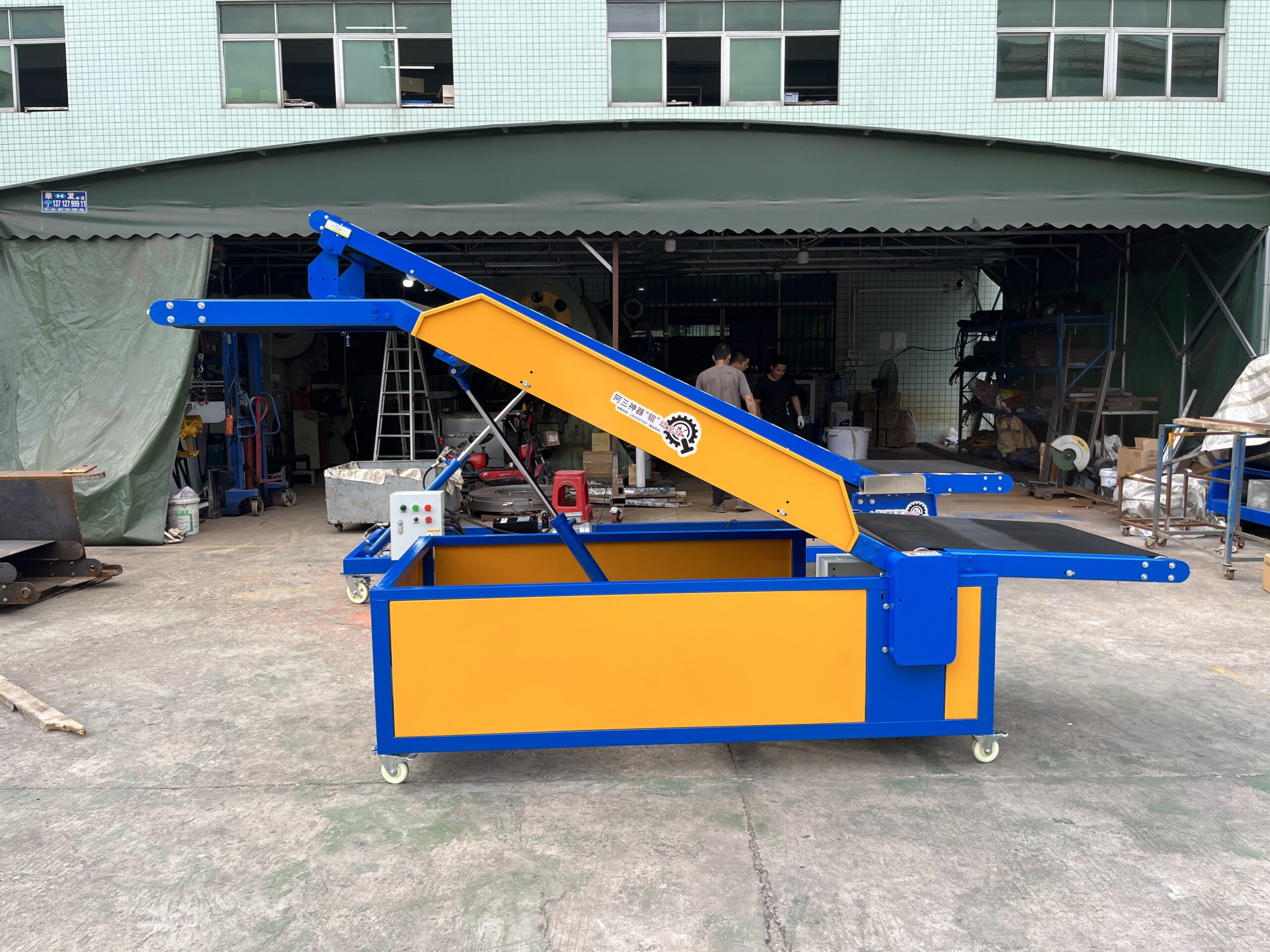

Hydraulic Conveyor – Micro – 3700 mm Length

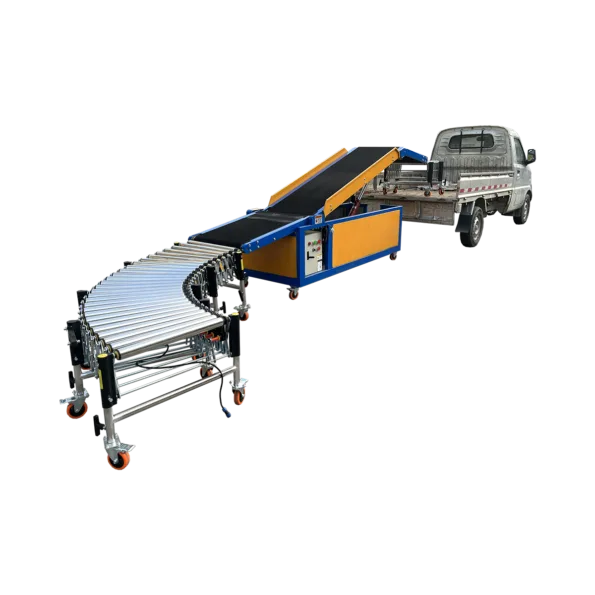

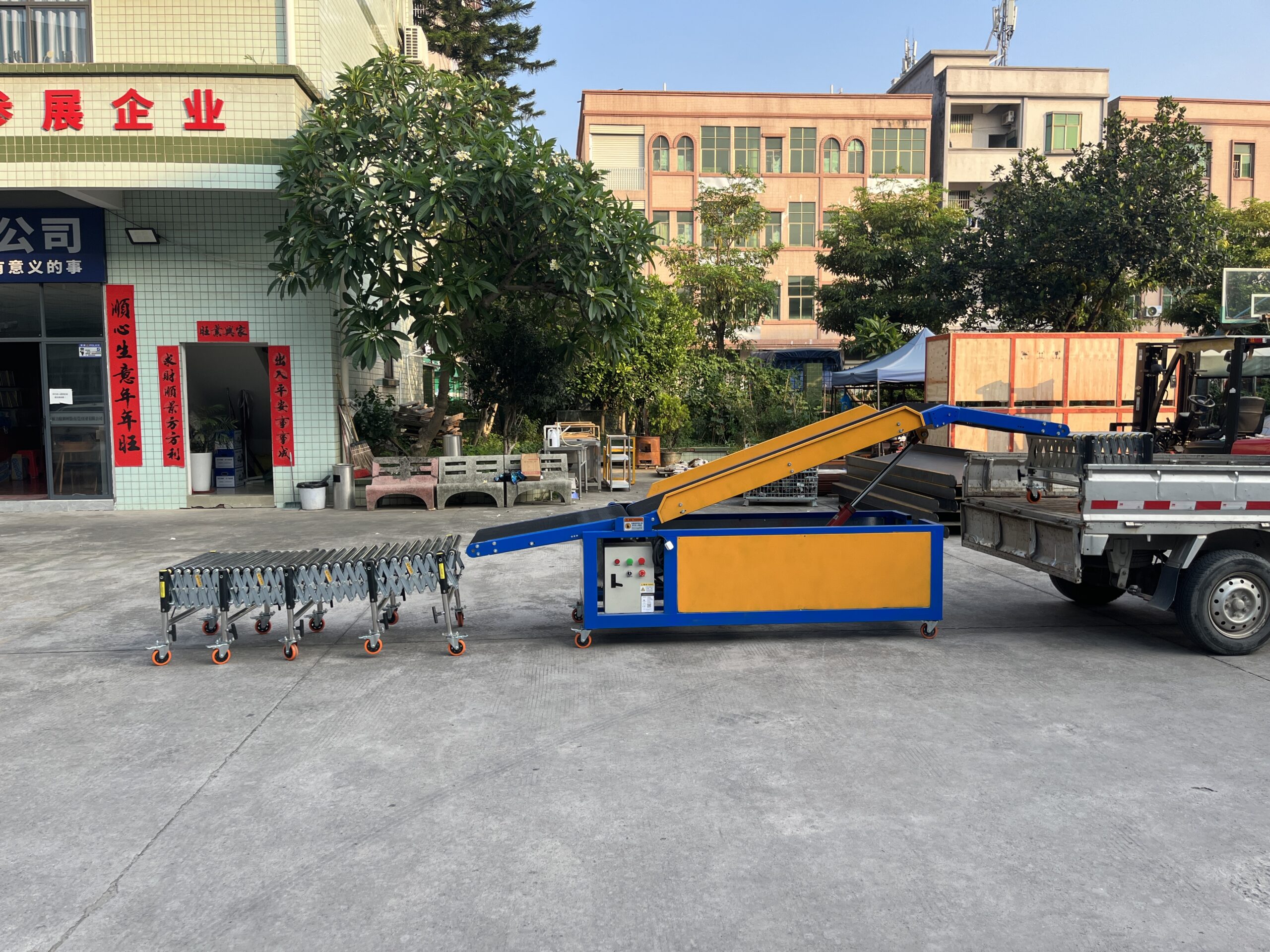

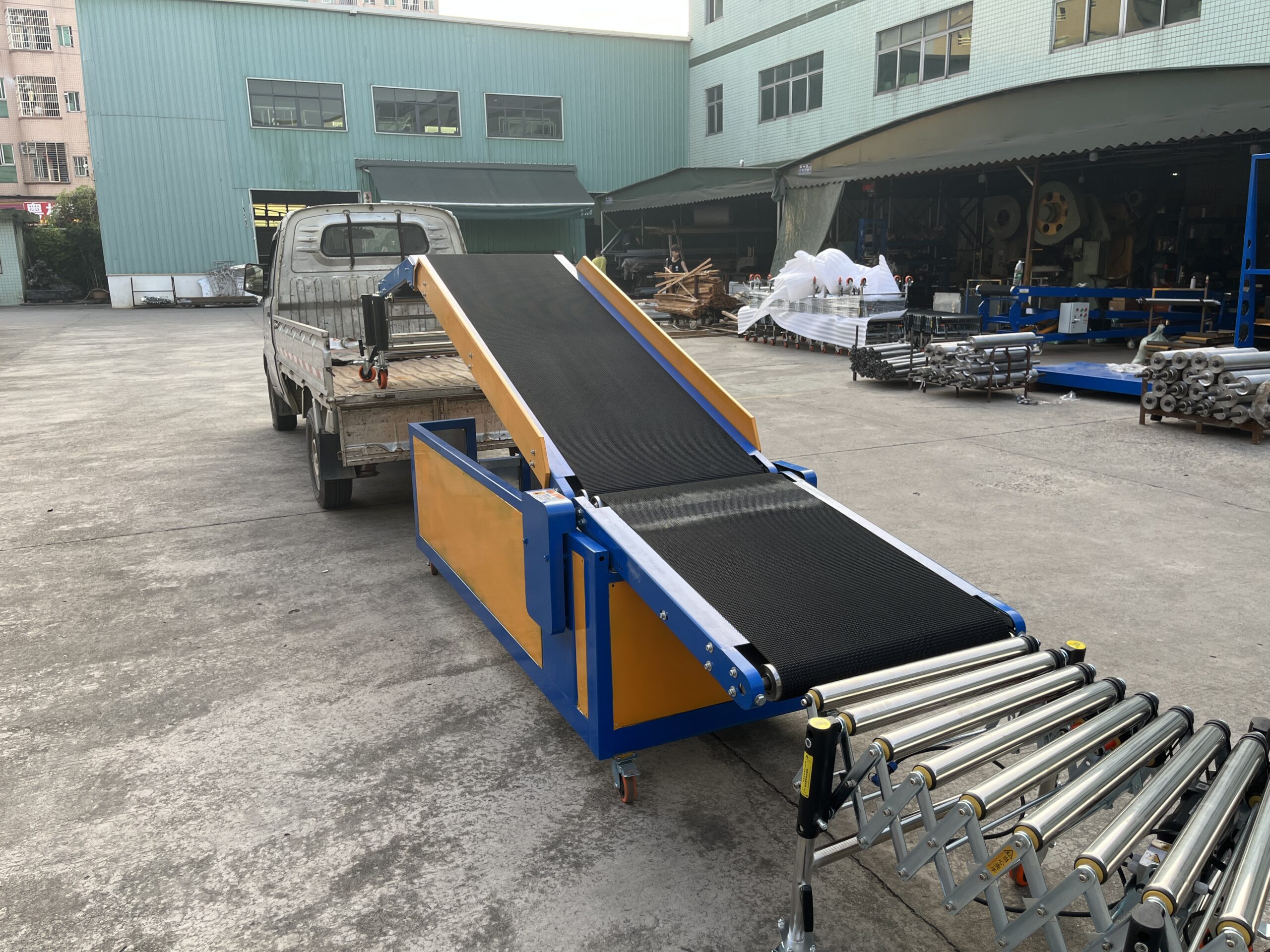

The Hydraulic Conveyor – Micro – 3700 mm Length is a compact, height-adjustable conveyor designed for loading and unloading small trucks. It offers a 50 kg/m load capacity, high friction for maximum stability, and a PVC anti-slip belt for durability. Perfect for businesses seeking a reliable, space-saving solution with smooth hydraulic lifting and lowering.
Propduct Model
Current Model
Key Parameters
Minimun Speed
0.3
m/min
Maximun Speed
30
m/min
Load Capacity
50
kg/m²
Machine Length
Overall Length
3700
mm

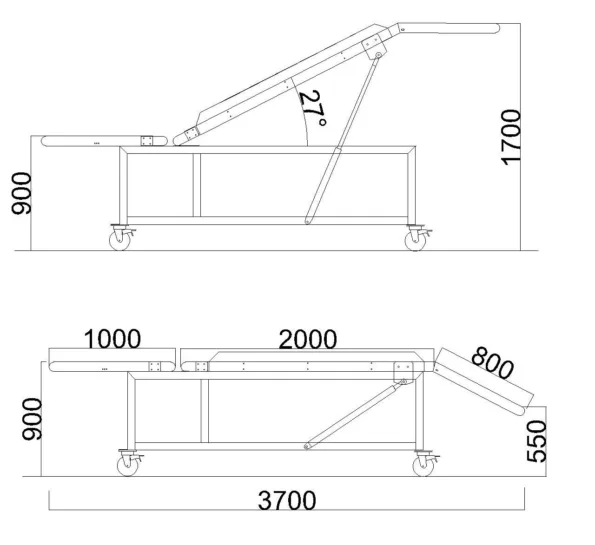

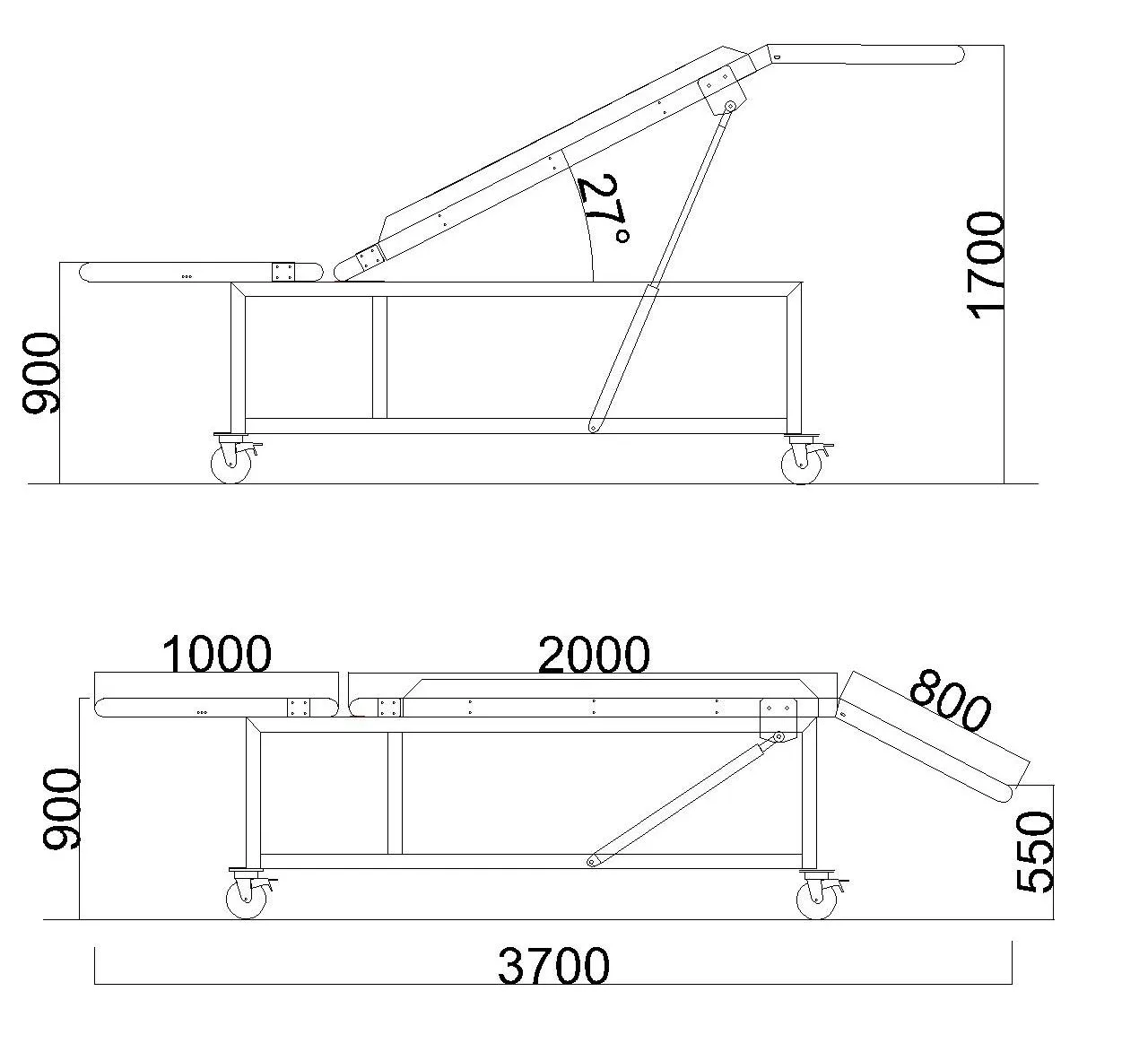

Dimension Drawing
Equipment Parameters
| Parameter Name | Specification |
| Overall Machine Length | 3700 mm |
| Upper Platform Length | 800 mm |
| Climbing Platform Length | 2000 mm |
| Lower Platform Length | 1000 mm |
| Speed | 30 m/min |
| Load Capacity | 50 kg/m |

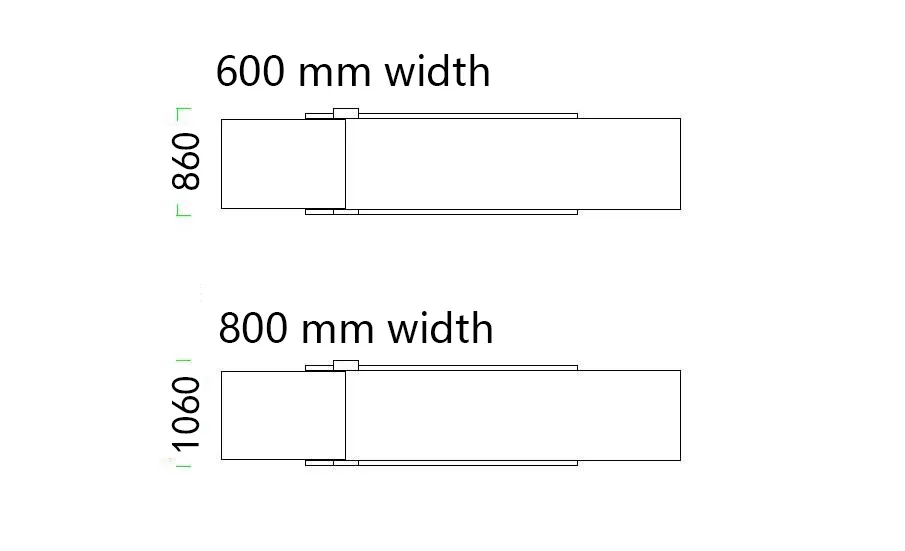

| Width | 600/800 mm |
| Roller | Diameter: 89 mm Process: Zinc-plated surface treatment |
| Axis Core | Diameter: 25 mm Process: Zinc-plated surface treatment |
| Conveyor Body | Thickness: ≥ 3.0 mm Material: Q345 Process: Baked Paint Coating |
| Equipment Frame | Thickness: ≥ 2.0 mm Material: Steel Process: Baked Paint Coating |
Accessories Parameters
| Parameter Name | Specification |
| Belt Operation | 750 W 50 Hz 220/380 V |
| Inverter Model | 0.75 kW 220/380 V |
| Hydraulic Pump | YS90L-4 50 Hz 2.2 kW 220/380V |
| Hydraulic Cylinder | Outer diameter: 60 mm Shaft diameter: 28 mm Voltage: 24/48/220/380 V |
| Belt Material | PVC 5.0 mm Black Grass Pattern Anti-Slip Belt (Wear-resistant) |
| Drive Mode | Gear Engagement |
| Electrical Control Box | Compliant with relevant national standards |
| Control Panel | Forward/Reverse Lift/Lower Emergency Stop |
| Electrical Components | Leakage Protection, AC Contactor (Domestic Brand) |
| Heavy-Duty Casters | Wheel width 50mm, Height 200mm, Full Brake, Designed for Load Requirements |
Warranty
| Parameter Name | Duration |
| Machine Warranty | 1 Year |
