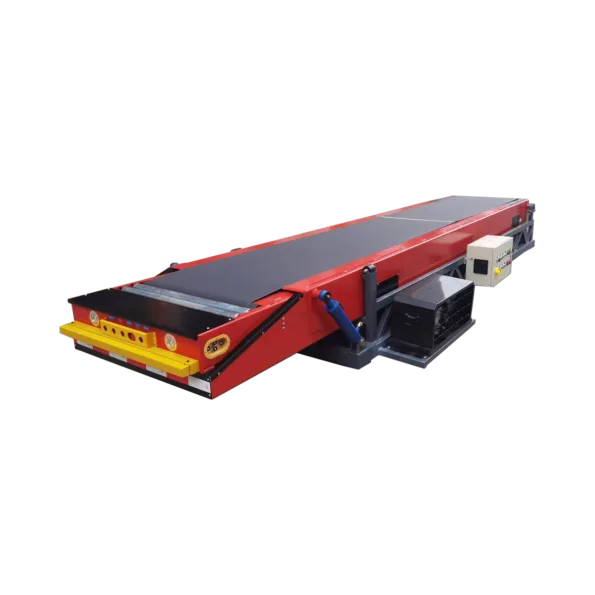

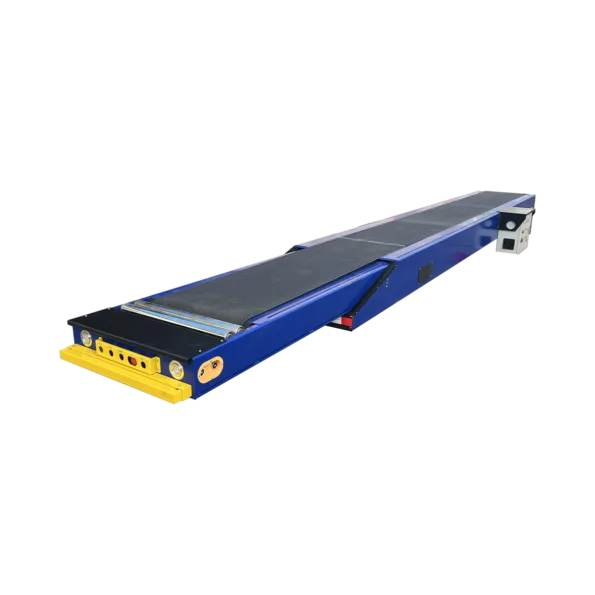

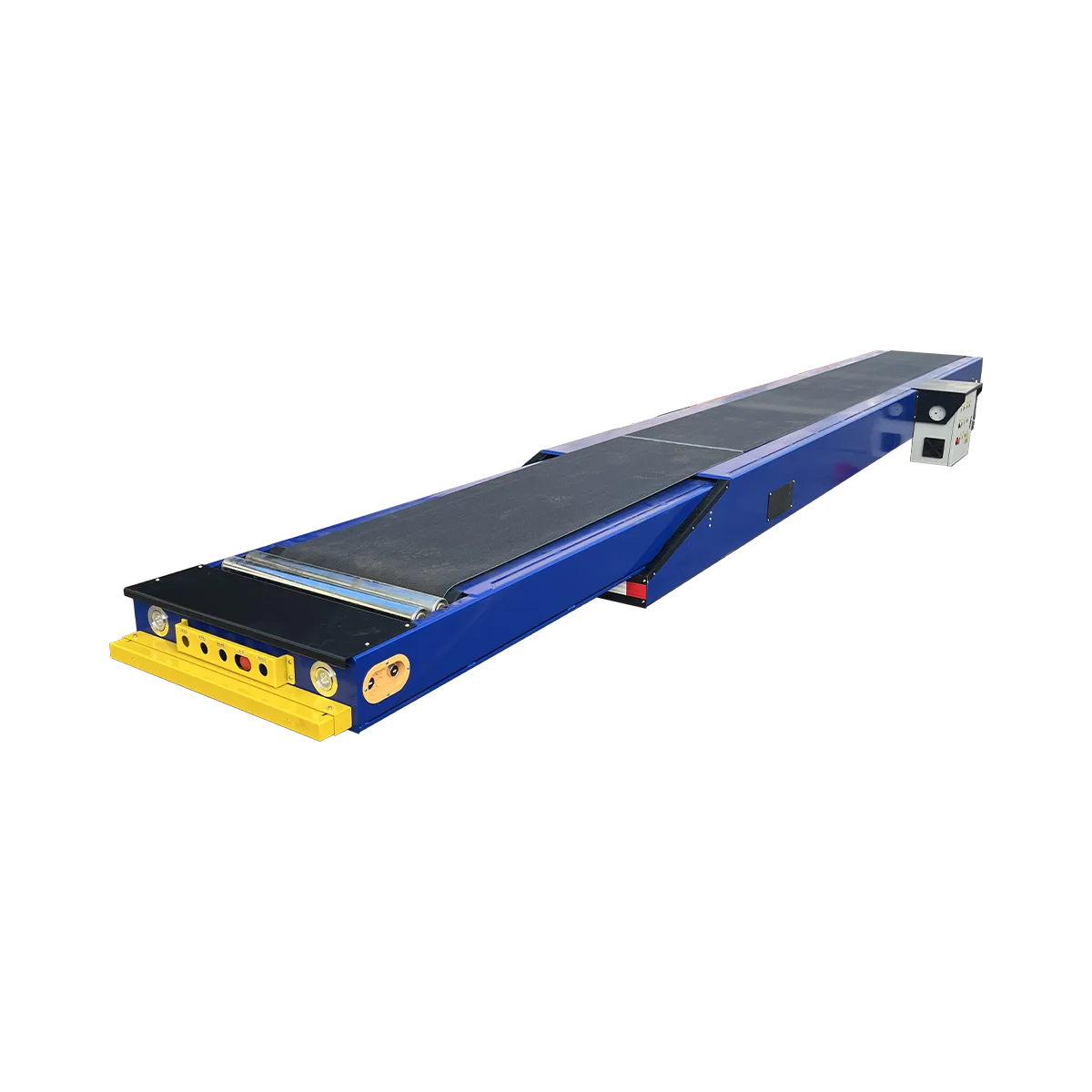

TeleScopic Conveyor – 2 Sections
The TeleScopic Conveyor – 2 Sections offers a compact and efficient solution for loading and unloading operations with adjustable speeds of 10-40 m/min. It features a telescoping speed of 10 m/min and a load capacity of 60 kg/m², making it suitable for various cargo types. The conveyor is powered by 1.5 kW and 0.4 kW motors and extends up to 6,000 mm, ideal for smaller trucks and tight spaces. With a 3 mm PVK impact-resistant belt, it ensures reliable performance. Custom options include hydraulic lifts, operator platforms, and mobility casters. Perfect for efficient material handling in smaller-scale logistics environments.
Propduct Model
Key Parameters
Machine Length
| Length A: Base length (mm) | Length B: Extension length (mm) | Length C: Fully extended length (mm) |
|---|---|---|
| 3000 | 2000 | 5000 |
| 4000 | 3000 | 7000 |
| 5000 | 4000 | 9000 |
| 6000 | 5000 | 11000 |
| 7000 | 6000 | 13000 |
Equipment Parameters
| Item | Parameters |
| Conveying Speed | 10-40 m/min (frequency adjustable) |
| Rated Load | ≤ 60 kg/m² |
| Motor | Conveying motor: 1.5 kW Taibang, Naixin<br>Telescoping motor: 0.4 kW Taibang, Naixin |
| Telescoping Speed | 10 m/min (frequency adjustable) |
| Belt | 3 mm PVK impact-resistant composite belt (steel buckle joint) |
| Electrical | 6 W/LED lighting × 2, Shengbang inverter (proportional to motor power), independent power distribution box, Chint electrical components |
| Cable Drag Chain | Cables: Dow (China), Jinhuan Yu, Jinlong Yu (copper conductors and wires), Drag Chain: Cargotec, Igus, Xin Pengrui |
| Bearing | Built-in bearings: Harbin/Renben, Bearing seat: TR/Renben/FSB |
| Optional Items | Hydraulic lift, operator platform, hump, electric casters, moving casters, counter, top sweep |
| Plate Thickness | Main beam: (fixed section) 6 mm and above BS700 or T700 and above steel plate bending (height 565 mm and above) Secondary beam: (first extending section) 5 mm and above BS700 or T700 and above steel plate bending (height 308 mm and above) Secondary beam: (second extending section) 5 mm and above BS700 or T700 and above steel plate bending (height 165 mm and above) |
| Drive Roller | Φ 140 × 850 seamless steel pipe precision manufacturing, surface rubber coating ≥ 10 mm, wall thickness ≥ 6 mm, spindle 45# steel quenching |
| Driven Roller | Φ 89 × 750 and 850 seamless steel pipe precision manufacturing, wall thickness ≥ 6 mm, spindle 45# steel quenching, pressure belt roller Φ 50 mm |
| Hydraulics | Hydraulic angle: 3.5°, mounting hole distance 620 mm, stroke 285 mm |
Other Parameters
| Fixed Section (mm) | Max Extension (mm) | Height (mm) | Equipment Weight (t) |
| 4000 | 5000 | ≥ 580 | 1.4 |
| 5000 | 7000 | ≥ 580 | 1.6 |
| 6000 | 8000 | ≥ 580 | 1.8 |
| 6000 | 8500 | ≥ 580 | 1.8 |
| 7000 | 9000 | ≥ 580 | 2 |
| 7000 | 9500 | ≥ 580 | 2 |
