Flexible Roller Conveyor
Modular Design • Flexible Extension • Boost Efficiency by 300% • Reduce Labor Costs by 50%
Our Conveying Solutions
Our Solutions
Trusted by businesses worldwide.
Powered Roller Conveyor Product Range
Suitable for goods packaged in carton and bag.
560 mm
1100 mm
120 kg/m
525 mm
1500 mm
80 kg/m
700 mm
2000 mm
100 kg/m
1050 mm
3000 mm
80 kg/m
Why Choose Naili Powered Roller Conveyor?
Eight core advantages to help you improve warehouse logistics efficiency and reduce operating costs
Flexible & Adjustable
Extendable length and adjustable height to adapt to various spaces and work requirements
Modular Design
Dedicated connectors enable multi-machine connection with single control box for easy conveyor line setup
Easy Mobility
Equipped with universal casters for flexible movement between different work areas
Strong Load Capacity
Load capacity of 80-100kg/m, suitable for packaged goods of various specifications
Adjustable Speed
Conveyor speed adjustable via frequency converter, up to 40m/min
Bidirectional Transport
Supports forward and reverse conveying for flexible operation
Sturdy Structure
Made of high-quality stainless steel and steel materials for long-term stable operation
Easy Installation
No professional installation required, quick deployment with plug-and-play setup

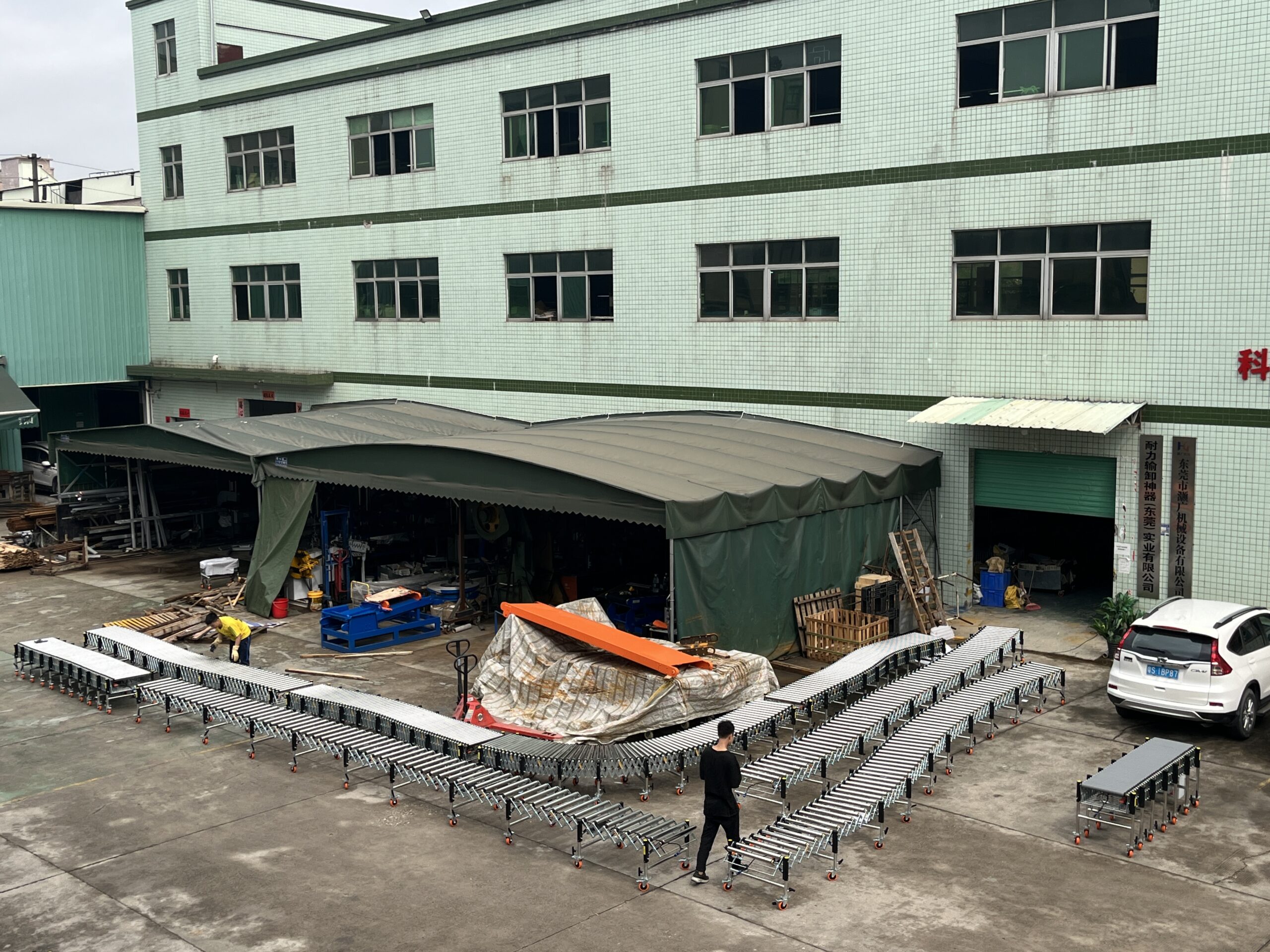

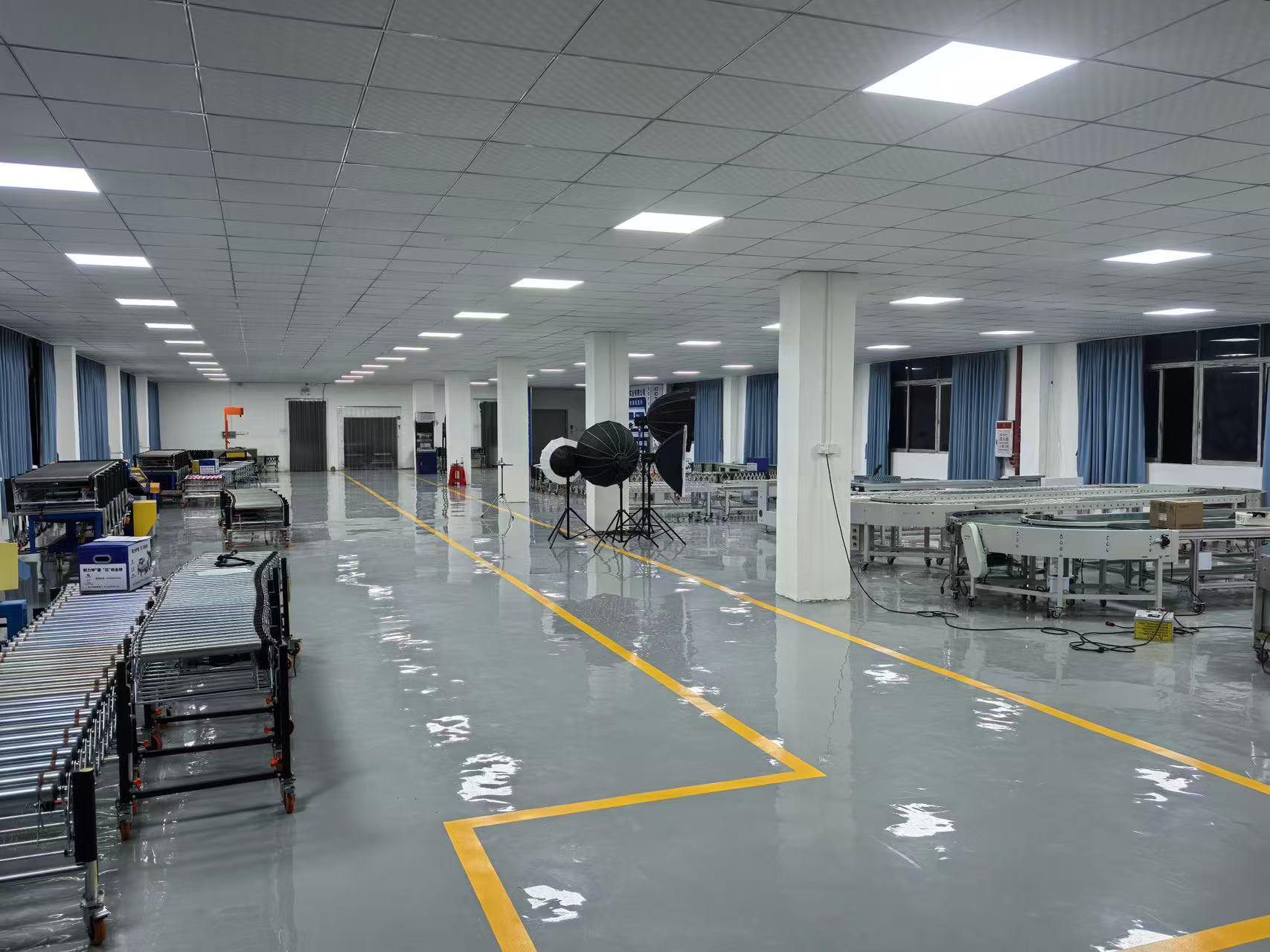

Our Factory
State-of-the-art Manufacturing Facility with Advanced Production Lines
Customer Cases
Technical Specifications Comparison
Detailed technical parameters to help you choose the most suitable model
| Specifications | O-Belt Driven 1500mm/Section | Multi-wedge Belt Driven 2000mm/Section | Multi-wedge Belt Driven 3000mm/Section |
|---|---|---|---|
| Total Length (Collapsed/Extended) | 525mm / 1500mm | 700mm / 2000mm | 1050mm / 3000mm |
| Extension Ratio | 1:3 | 2:3 | 1:3 |
| Load Capacity | 80 kg/m | 100 kg/m | 80 kg/m |
| Conveying Speed | 0.3-40 m/min | 0.3-40 m/min | 0.3-40 m/min |
| Optional Width | 500/600/800 mm | 500/600/800 mm | 500/600/800 mm |
| Drive Method | O-Belt | Multi-wedge Belt | Multi-wedge Belt |
| Reducer | 120W (one per 1.5m) | 120W (one per 2m) | 120W (one per 2m) |
| Frame Warranty | 12 Months | 12 Months | 12 Months |
Get Professional Solution Now
ill out the form below and our engineers will provide you with customized conveyor solutions and accurate quotes within 24 hours
