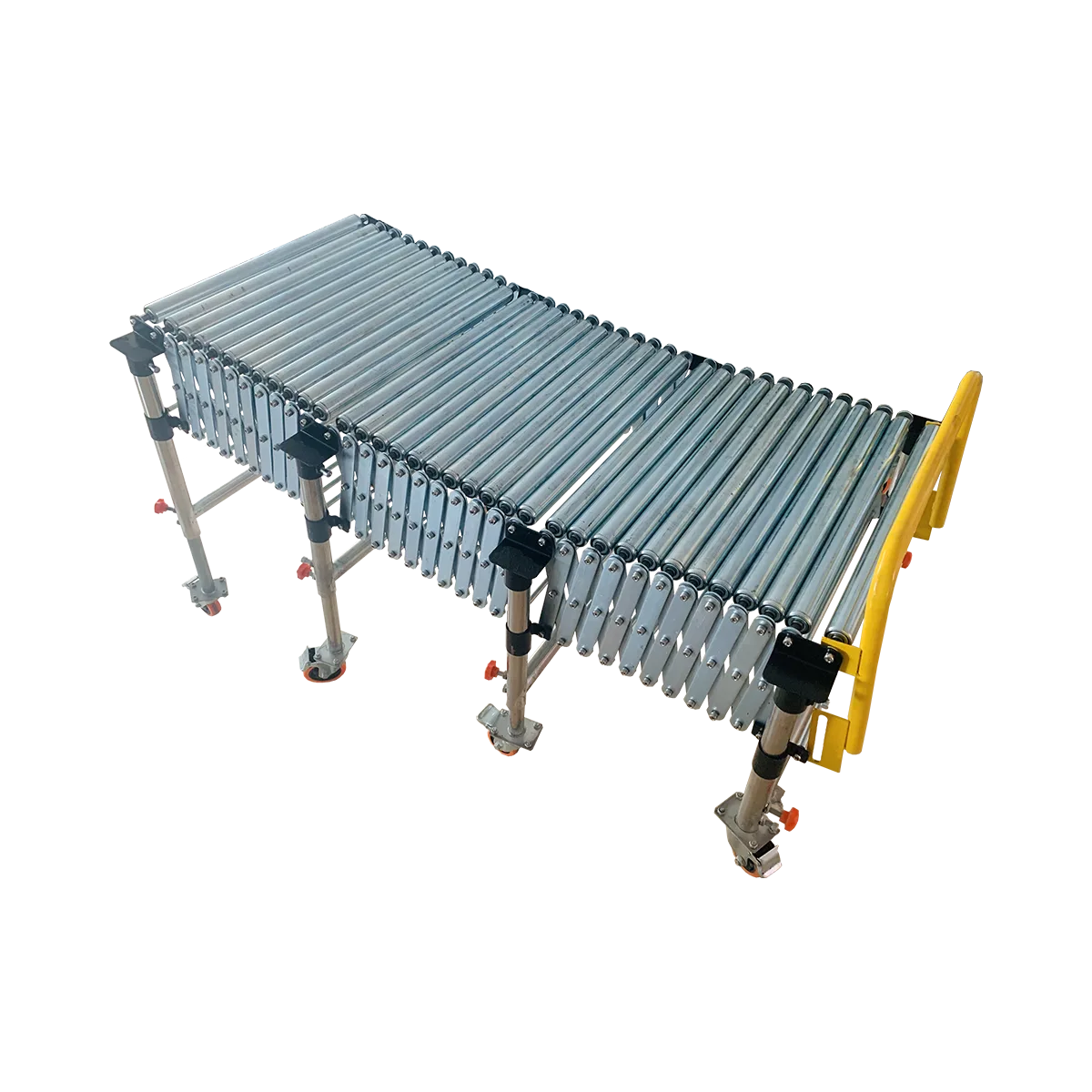

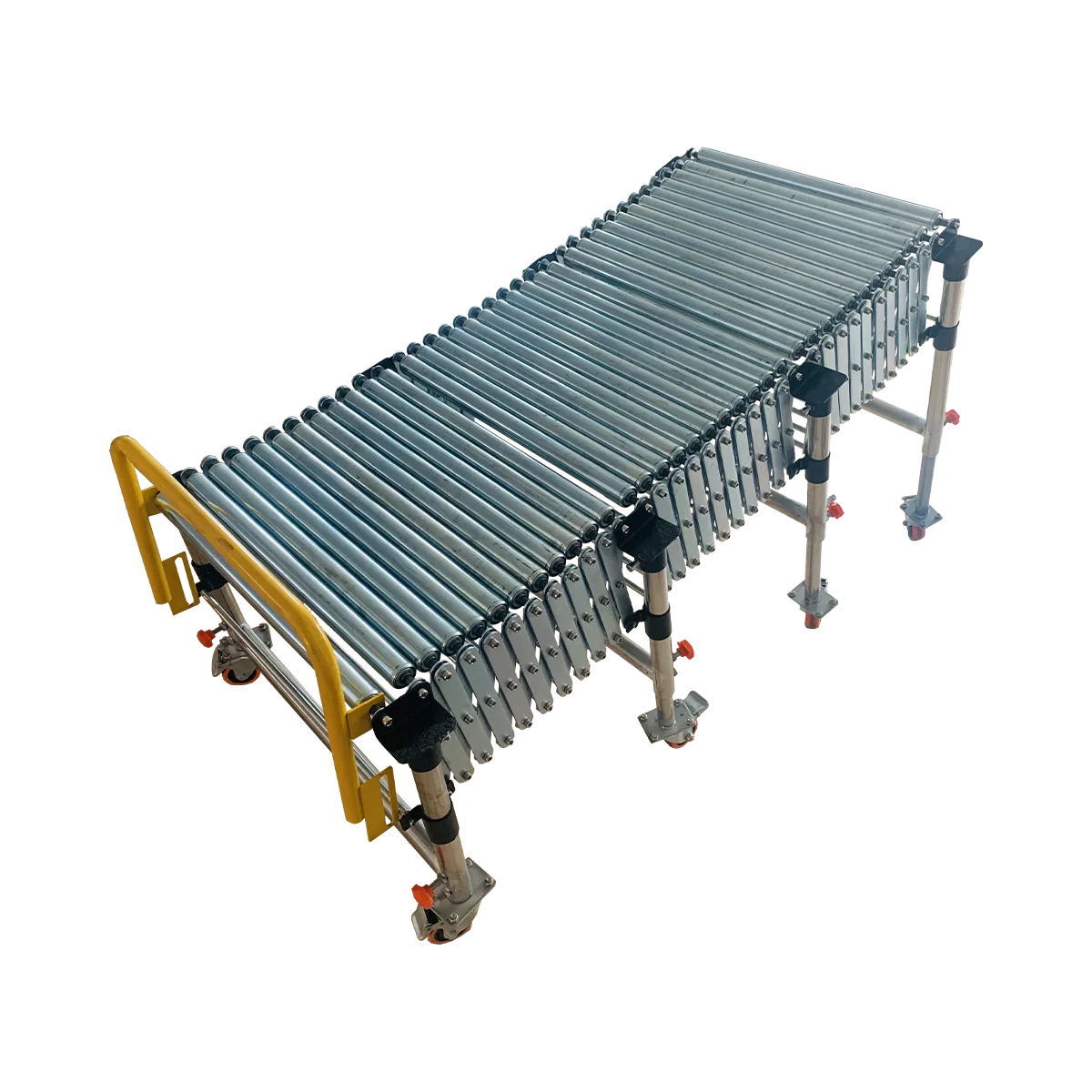

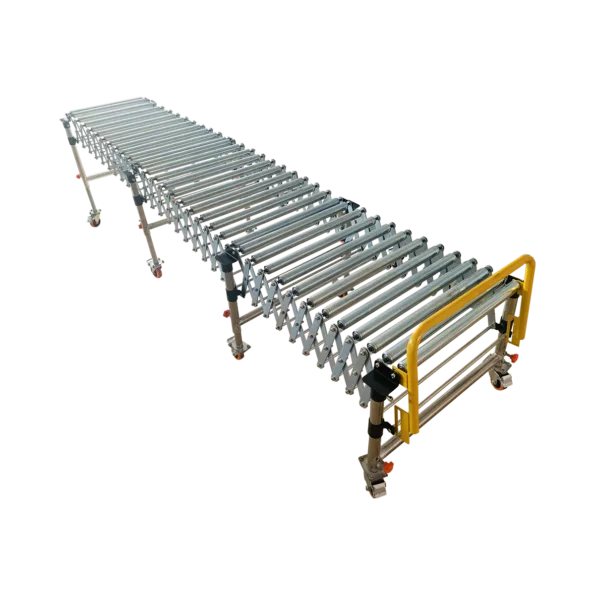

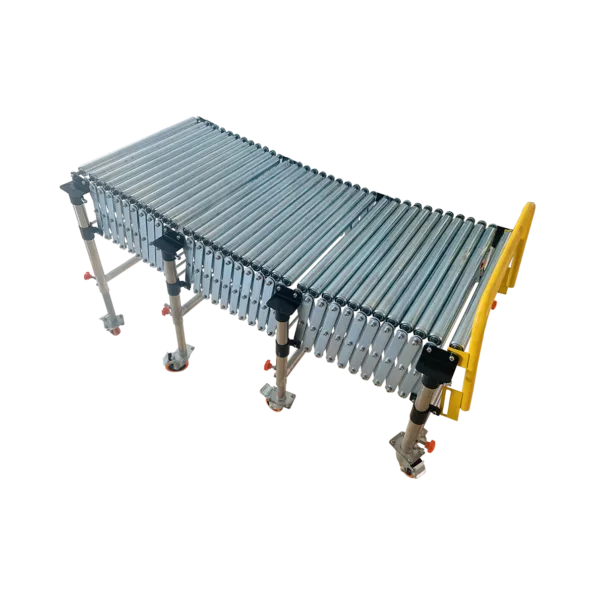

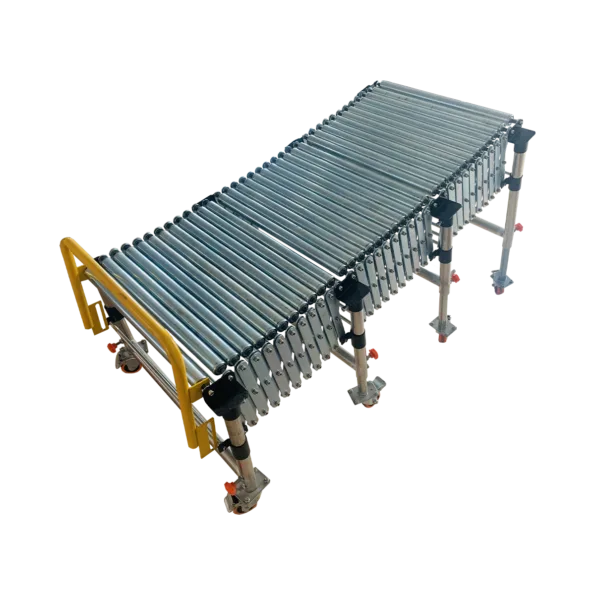

Gravity Roller Conveyor – Roller Diameter 38 mm – 1700 mm/Section
The Gravity Roller Conveyor – Roller Diameter 38 mm – 1700 mm/Section is a gravity-driven conveyor with a load capacity of 50 kg/m. It features an expandable length (485 mm to 1700 mm) and is available in 500/600/800 mm widths, with height-adjustable legs for versatile use. Made from galvanized/201 stainless steel rollers, it offers durable and efficient operation. Weight per section: 20 kg (500 mm width), 22 kg (600 mm width), and 30 kg (800 mm width).
Propduct Model
Current Model
Other Models
Key Parameters
Load Capacity
50
kg/m²
Machine Length
Collapsed Length
485
mm
Extended Length
1700
mm
Height Options
| Minimum Height | Maximum Height |
|---|---|
| 460 | 680 |
| 550 | 820 |
| 750 | 1200 |
| 900 | 1500 |

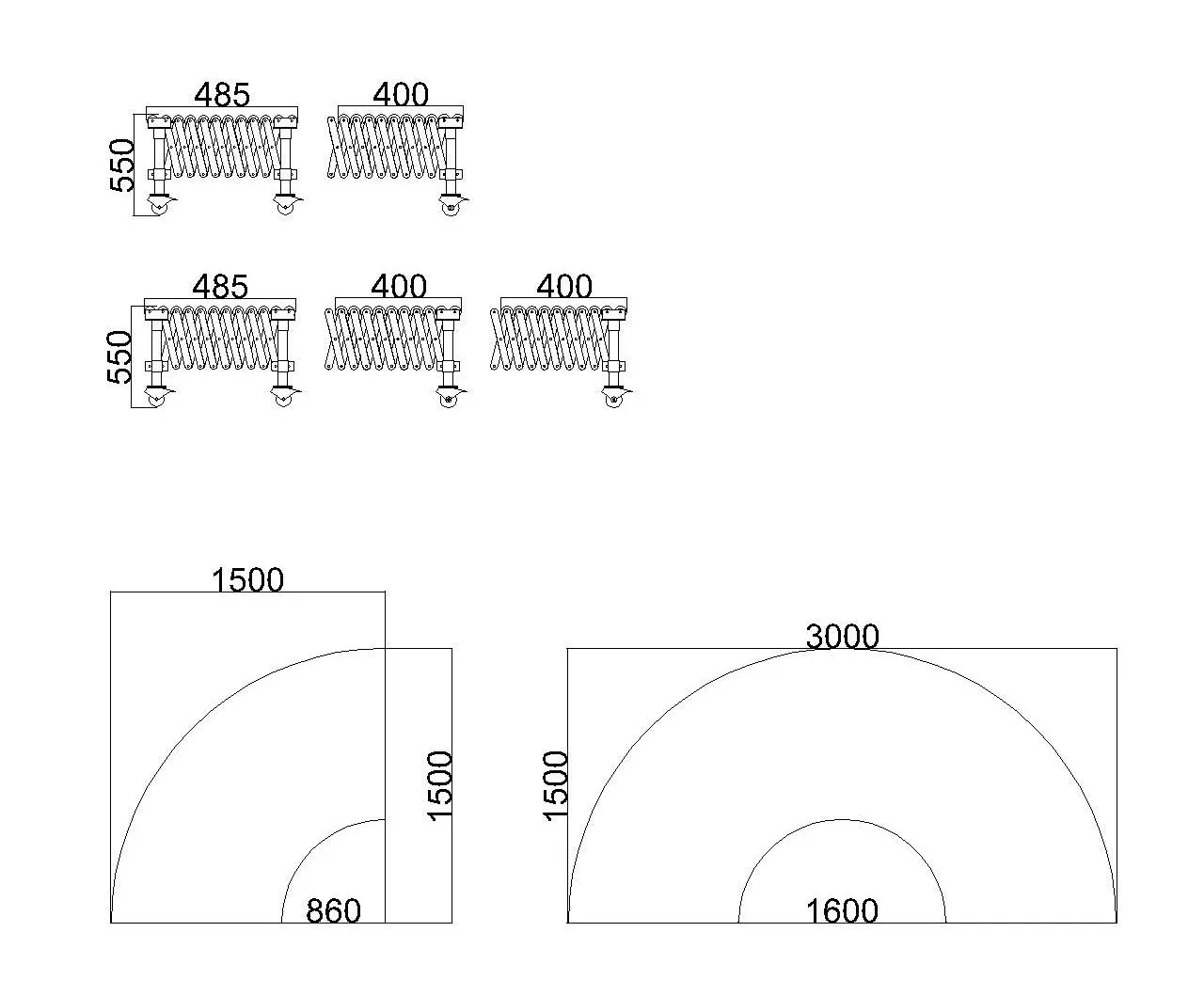

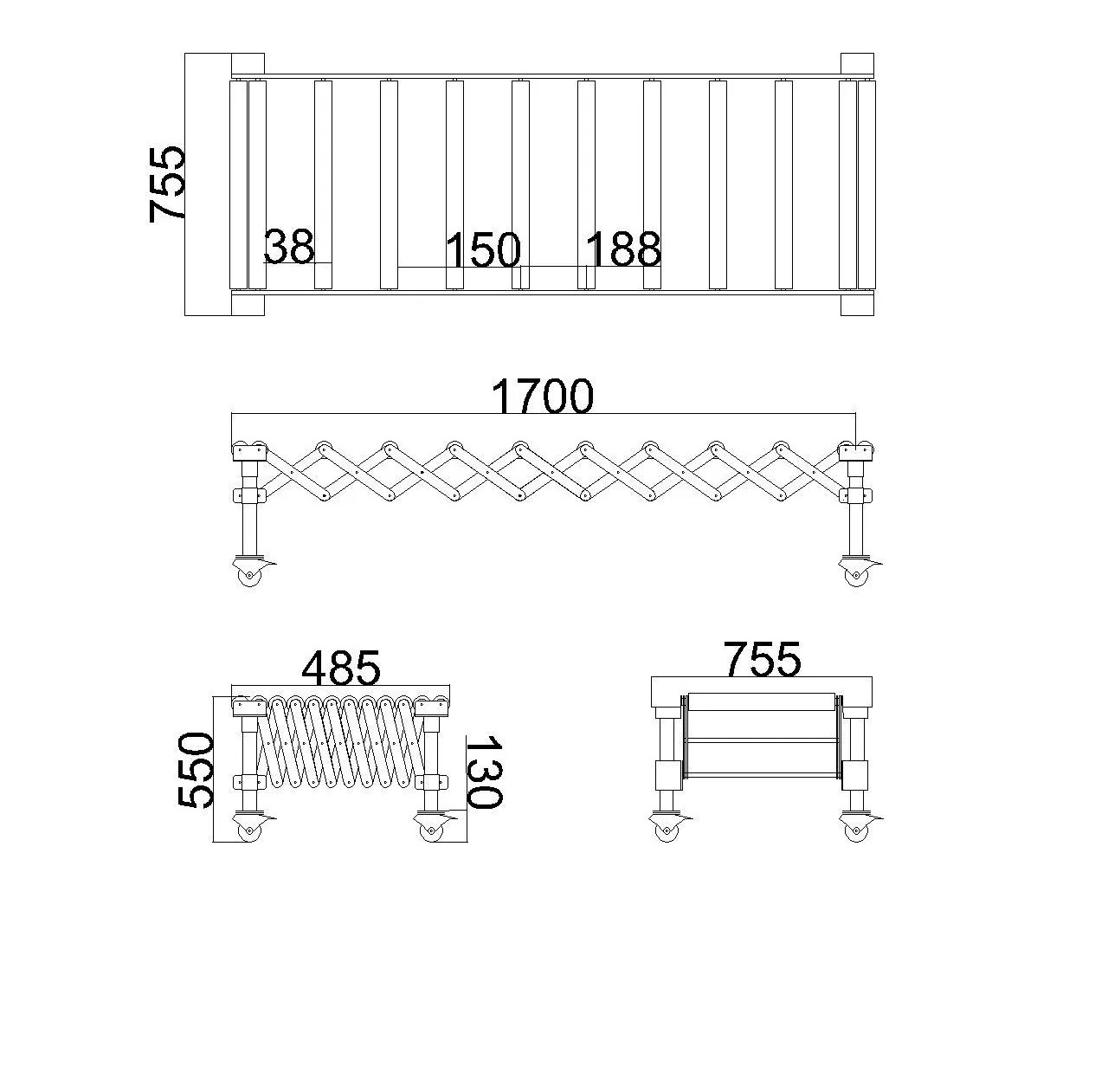

Dimension Drawing
Equipment Parameters
| Width | 500/600/800 mm | Custom width available |
| Roller | Diameter: 38 mm Thickness: ≥1.5 mm Material: Galvanized/201 Stainless Steel Standard Section Roller Count: 12 Expanding Section Roller Count: 11 Roller Gap: 150 mm | |
| Axle | Q235 | |
| Extension Ratio | 1:3 | |
| Leg Frame (Main H-Frame) | Section Dimensions: 38*38 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | |
| Support Leg | Diameter: 32 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | Sleeve Structure Design Height Adjustable |
| Support Legs Length | 450-680/550-820/750-1200/900-1500 mm | Custom length available |
| Equipment Frame Steel | Thickness: ≥ 3.5mm Material: Q345 | |
| Drive Mode | Physical gravity | |
| Equipment Material | Carbon steel/201 stainless steel |
Other Parameters
| Product Dimensions | |||
| Width | Total Body Width | Effective Width | Weight/Section |
| 500mm | 655 mm | 500 mm | 20 kg |
| 600mm | 755 mm | 600 mm | 22 kg |
| 800mm | 955 mm | 800 mm | 30 kg |
Warranty
| Parameter Name | Specification |
| Frame Warranty Period | 12 Months |
