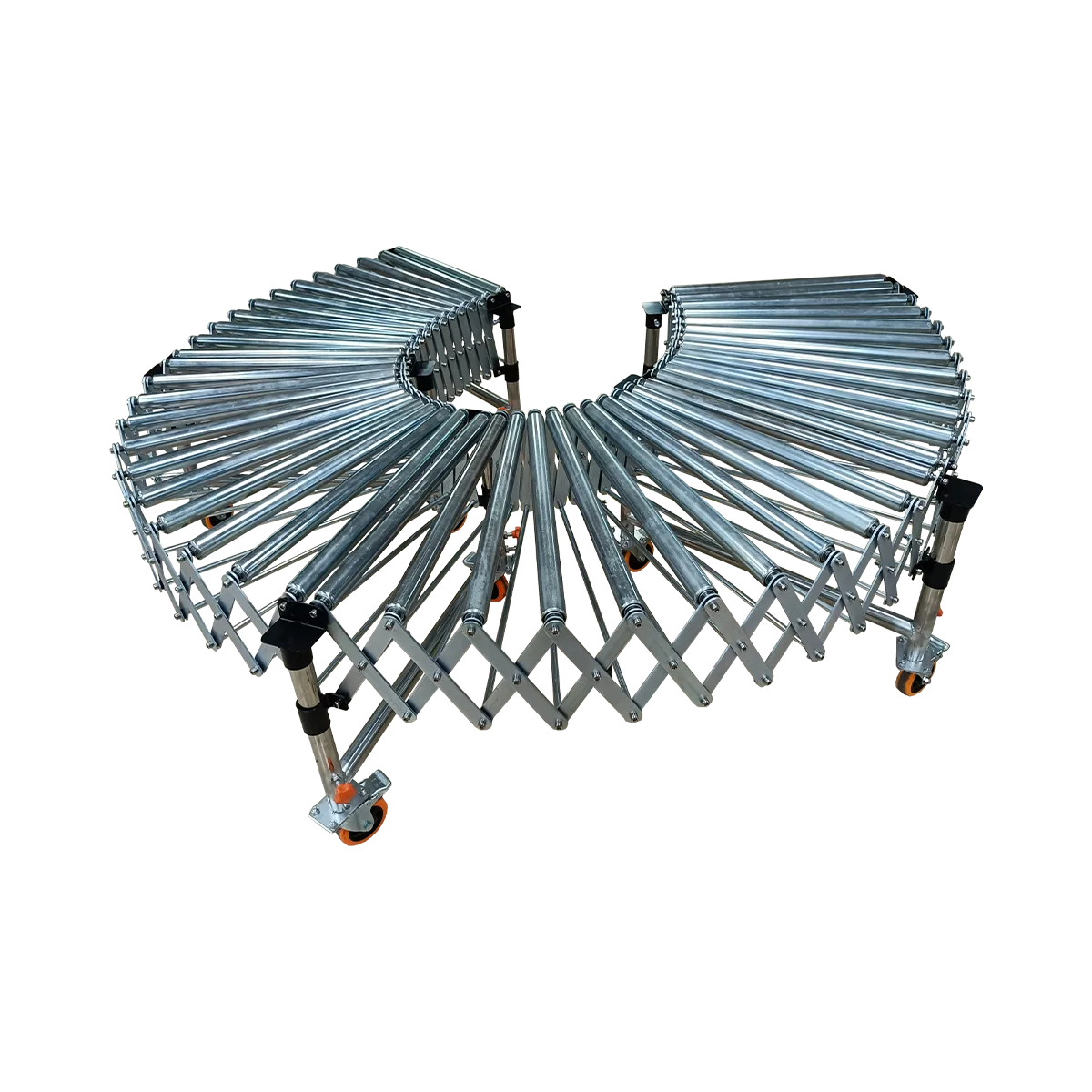

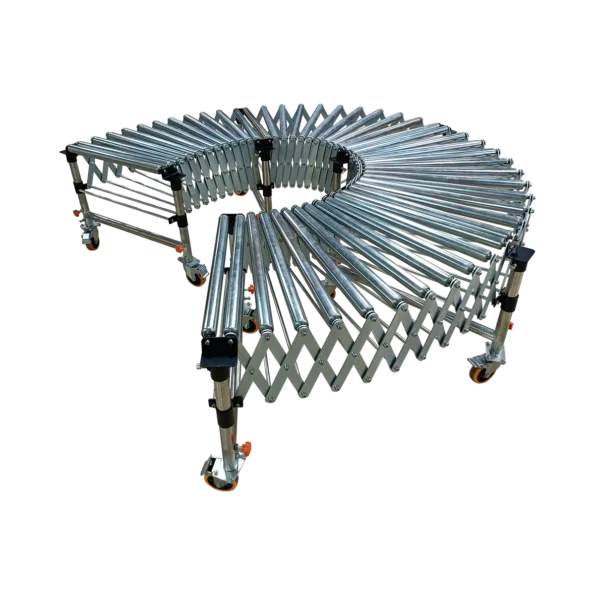

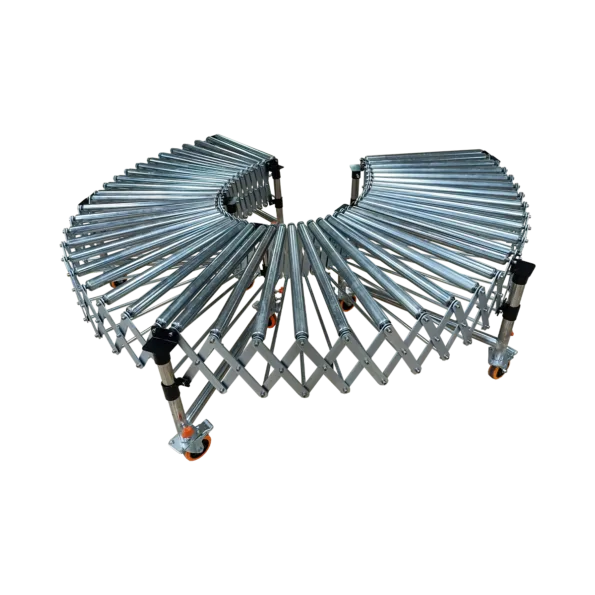

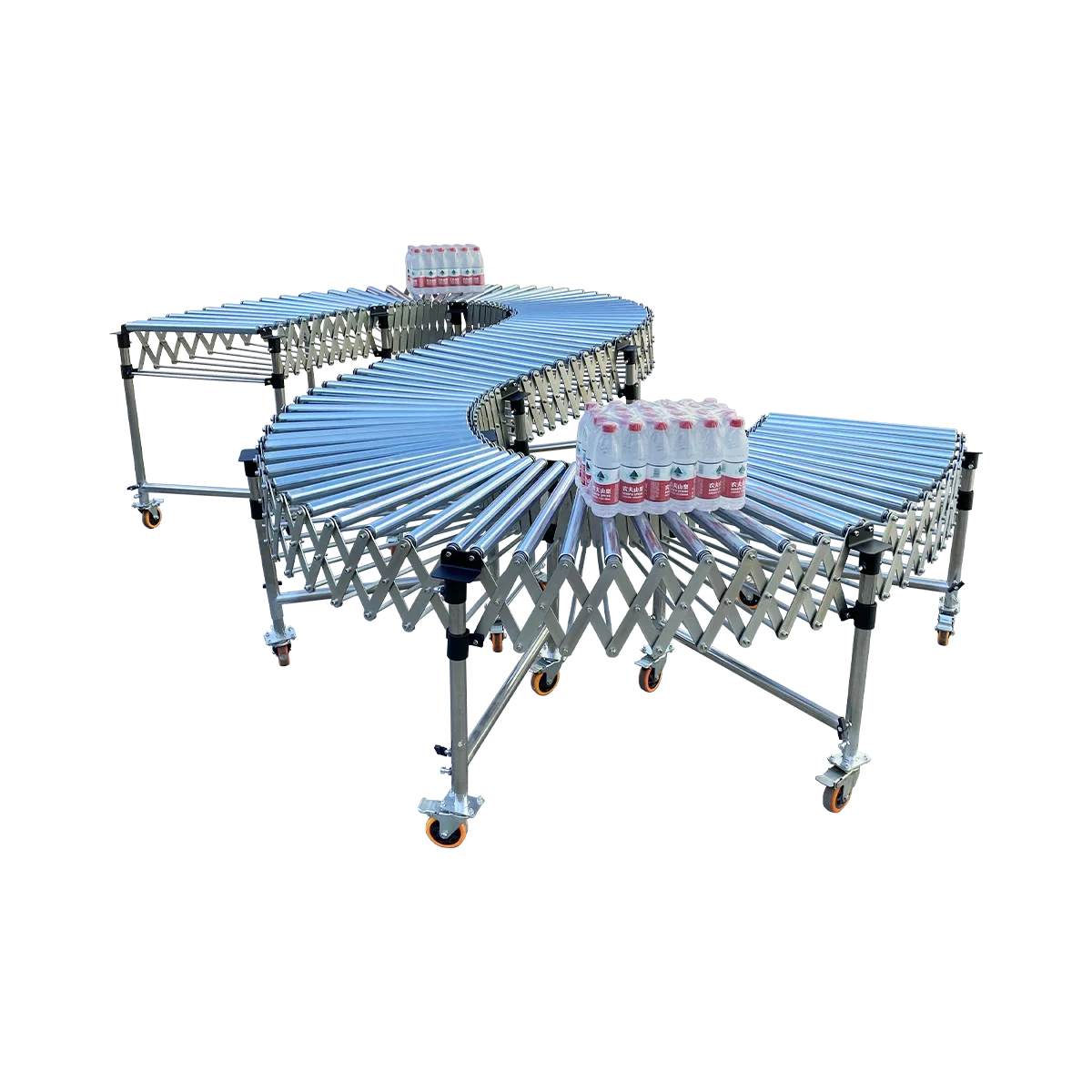

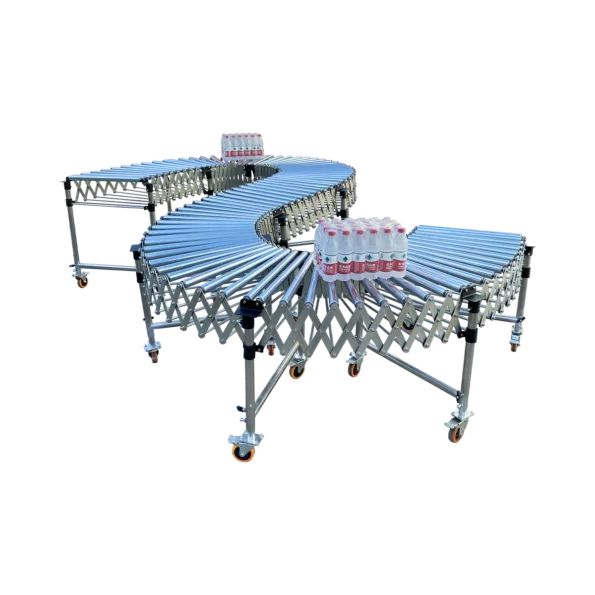

Gravity Roller Conveyor – Roller Diameter 50 mm – 1500 mm/Section
The Gravity Roller Conveyor – Roller Diameter 50 mm – 1500 mm/Section is a durable, gravity-driven conveyor with a load capacity of 80 kg/m. It features expandable length (525 mm to 1500 mm) and comes in 500/600/800 mm widths, with adjustable legs for flexibility. Made with galvanized/201 stainless steel rollers, it provides smooth, reliable performance. The customizable width and height-adjustable legs make it ideal for various material handling needs. Weight per section: 26 kg (500 mm width), 30 kg (600 mm width), and 39 kg (800 mm width).
Propduct Model
Key Parameters
Machine Length
Height Options
| Minimum Height | Maximum Height |
|---|---|
| 480 | 800 |
| 550 | 900 |
| 750 | 1100 |
| 900 | 1200 |

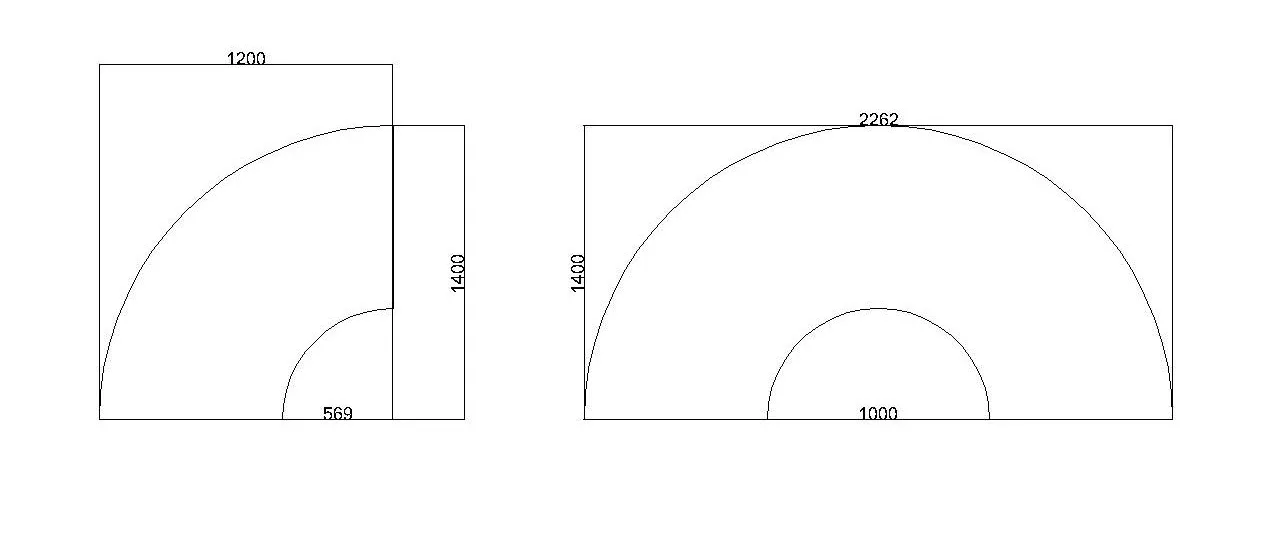

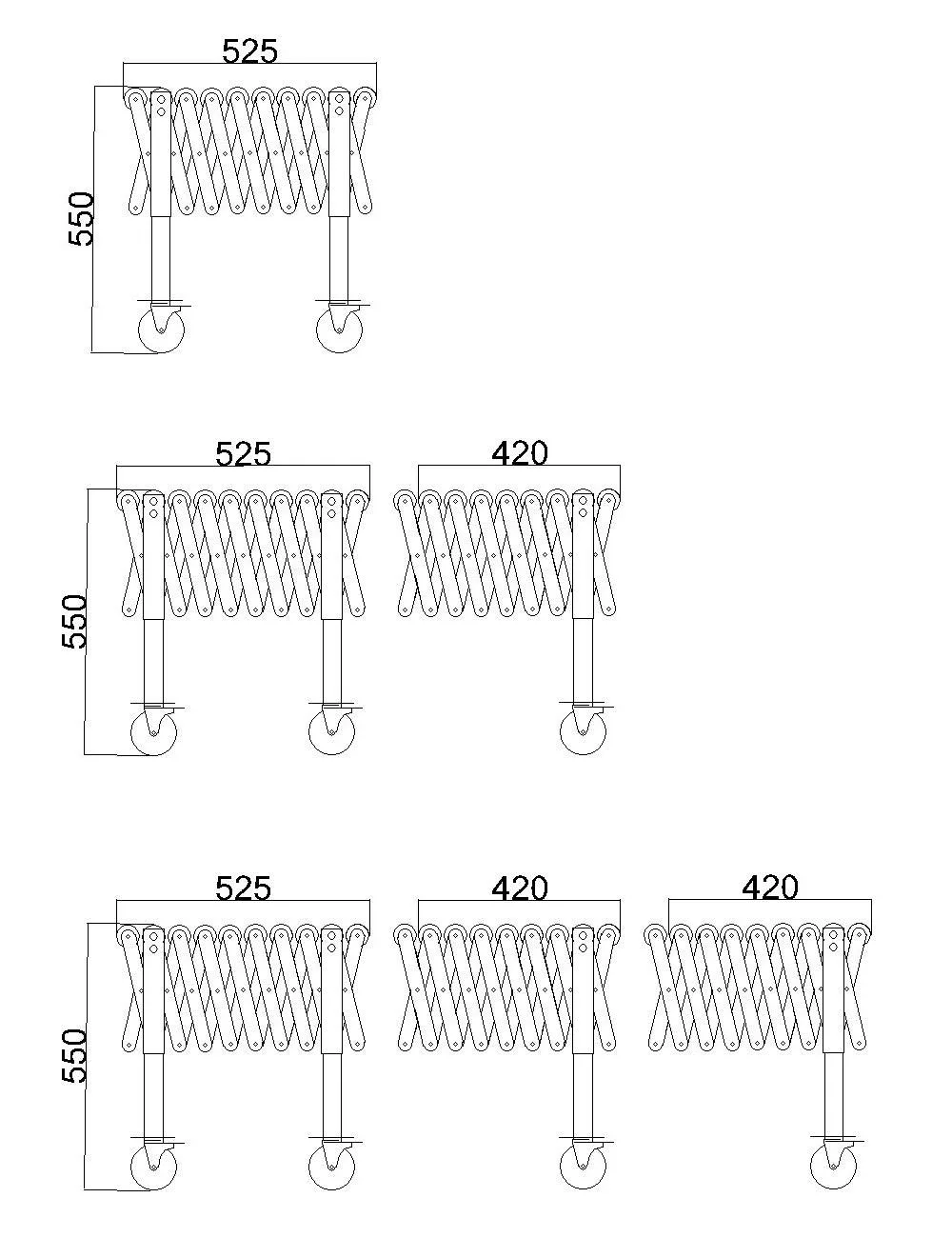

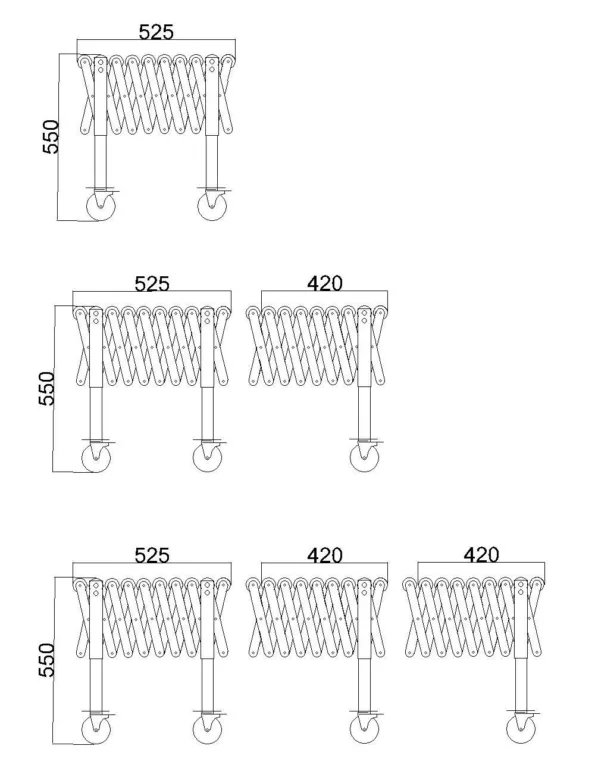

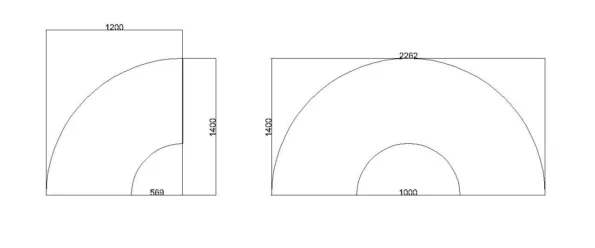

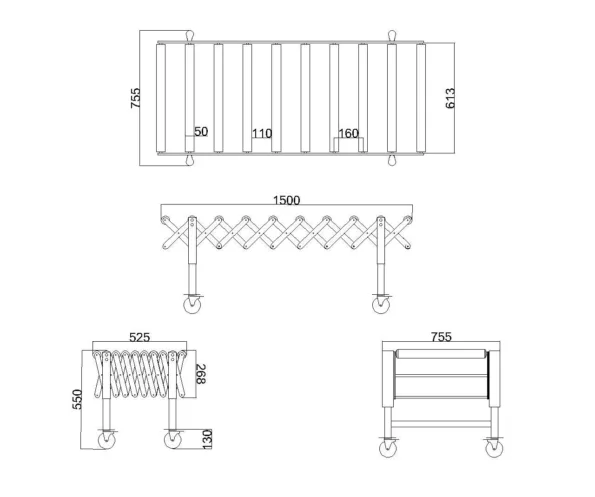

Dimension Drawing
Equipment Parameters
| Parameter Name | Specification | Remarks |
| Overall Machine Length | Collapsed: 525 mm Extended: 1500 mm | |
| Load Capacity | 50 kg/m | The heavier the goods, the greater the impact force |
| Width | 500/600/800 mm | Custom width available |
| Roller | Diameter: 50 mm Thickness: ≥1.5 mm Material: Galvanized/201 Stainless Steel Standard Section Roller Count: 10 Expanding Section Roller Count: 9 Roller Gap: 110 mm | |
| Axle | Q235 | |
| Extension Ratio | 1:3 | |
| Leg Frame (Main H-Frame) | Section Dimensions: 35*35 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | |
| Support Leg | Thickness: ≥ 1.3 mm Material: 201 Stainless Steel Process: Galvanized Surface Treatment | Height Adjustable |
| Support Legs Length | 450-680/550-820/750-1200/900-1500 mm | Custom length available |
| Equipment Frame Steel | Thickness: ≥ 3.5mm Material: Q345 | |
| Drive Mode | Physical gravity | |
| Equipment Material | Carbon steel/201 stainless steel |
Other Parameters
| Product Dimensions | |||
| Width | Machine Width | Roller Width | Weight/Section |
| 500mm | 655 mm | 500 mm | 26 kg |
| 600mm | 755 mm | 600 mm | 30 kg |
| 800mm | 955 mm | 800 mm | 39 kg |
Warranty
| Parameter Name | Specification |
| Frame Warranty Period | 12 Months |
