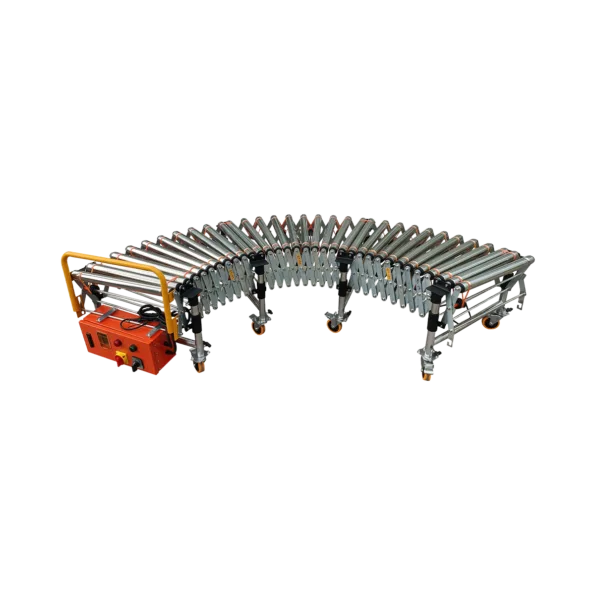

Powered Roller Conveyor – O-shaped Belt Driven – 1500 mm/Section
The Powered Roller Conveyor – O-shaped Belt Driven – 1500 mm/Section is designed for efficient material handling with a load capacity of 80 kg/m and a speed of 40 m/min. The conveyor features O-shaped belt drive, providing durability and wear resistance. It is highly flexible with height-adjustable legs and an expandable design (from 525 mm to 1500 mm). Made with galvanized/201 stainless steel rollers, it ensures smooth operation and long-term reliability. The compact design and customizable length make it an ideal solution for businesses looking for space-saving, flexible conveyors for efficient load handling.
Propduct Model
Key Parameters
Machine Length
Height Options
| Minimum Height | Maximum Height |
|---|---|
| 450 | 800 |
| 550 | 900 |
| 750 | 1100 |
| 900 | 1200 |

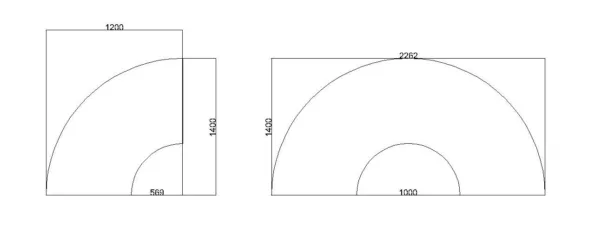

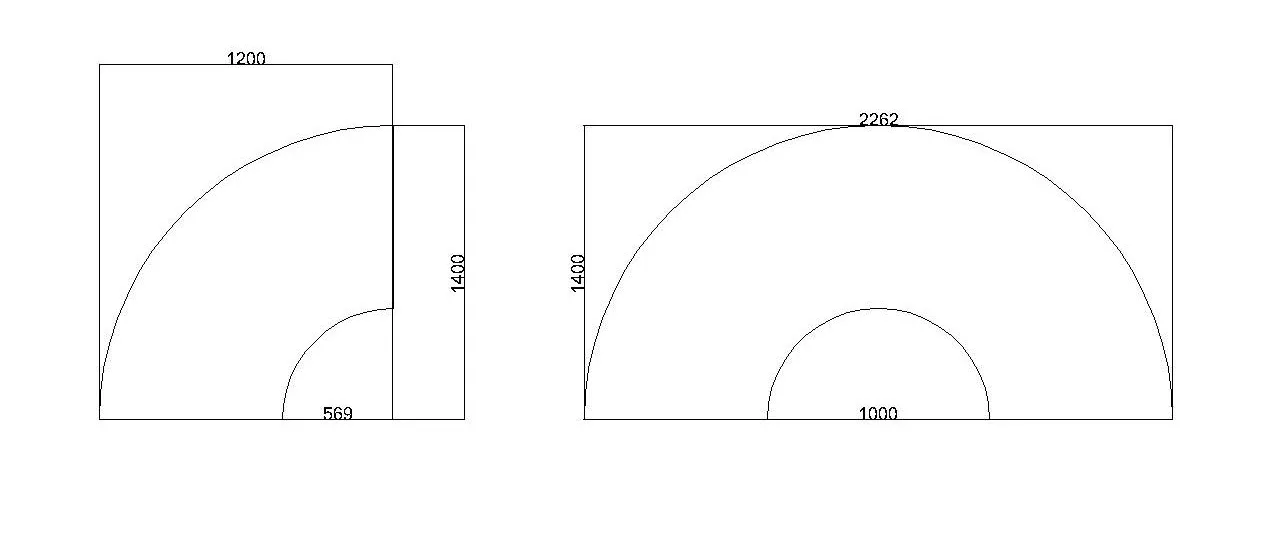

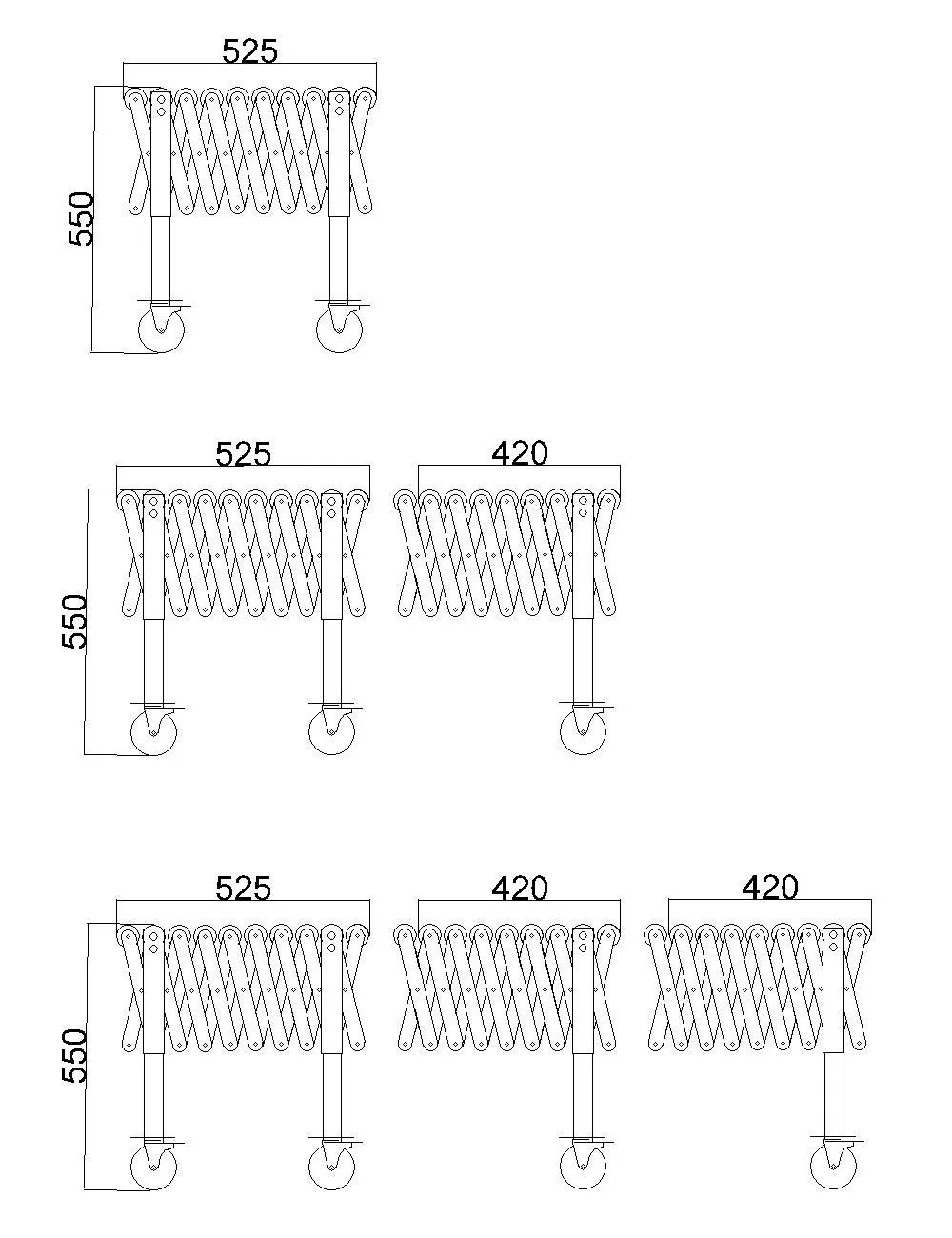

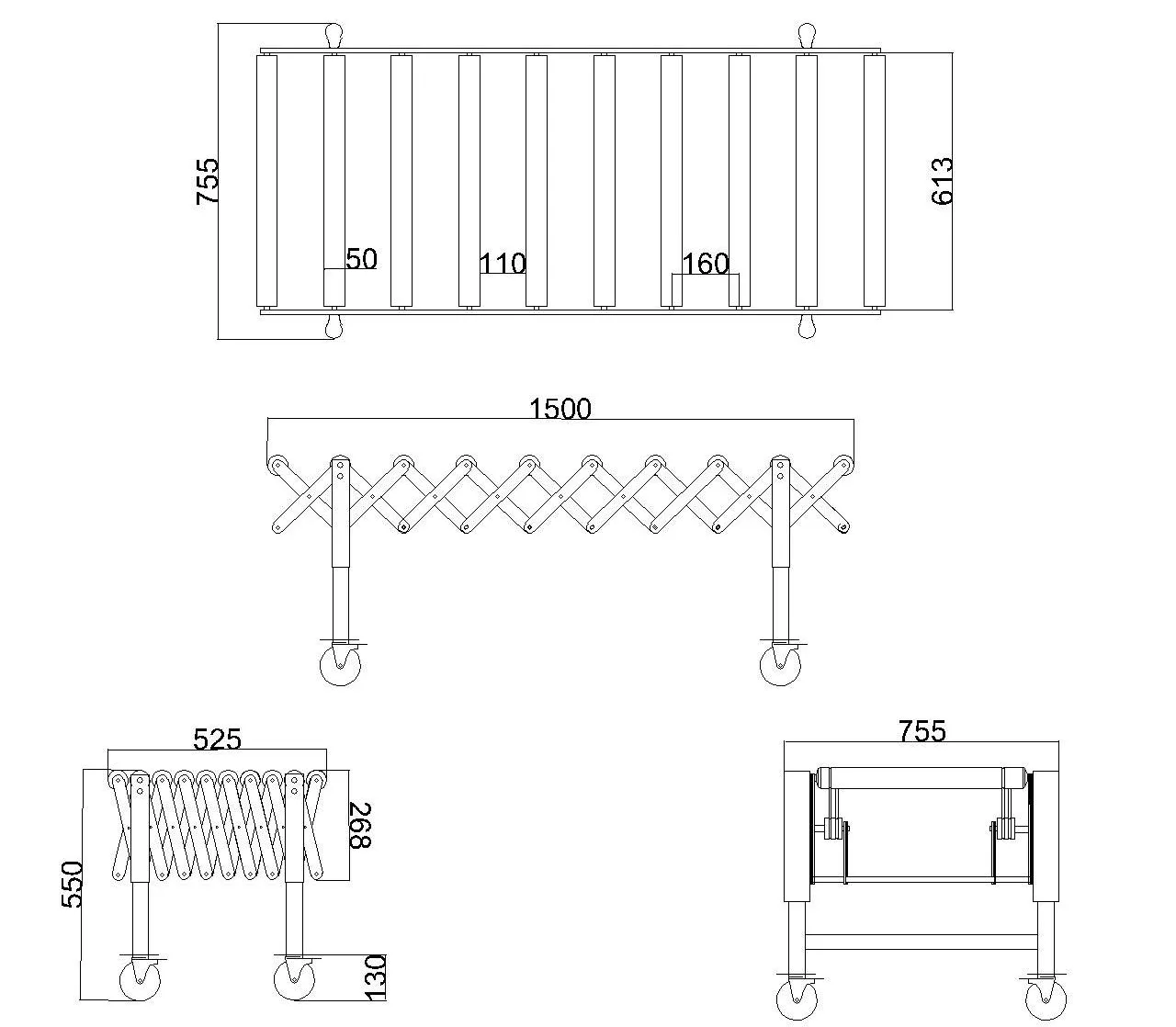

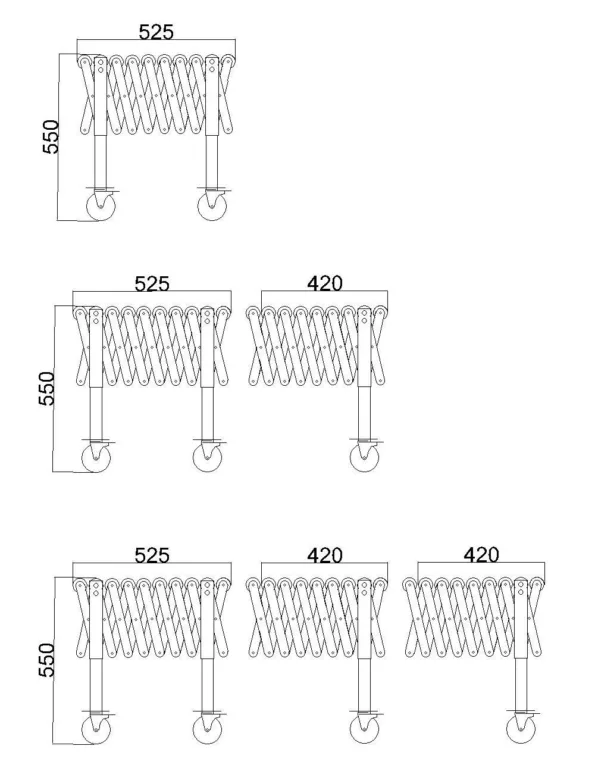

Dimension Drawing
Equipment Parameters
| Parameter Name | Specification | Remarks |
| Overall Machine Length | Collapsed: 525 mm Extended: 1500 mm | |
| Extension Ratio | 1:3 | |
| Load Capacity | 80 kg/m | |
| Speed | 40 m/min | |
| Width | 500/600/800 mm | Custom sizes available |
| Roller | Diameter: 50 mm Thickness: ≥ 1.5 mm Material: Galvanized/201 Stainless Steel Standard Section Roller Count: 10 Expanding Section Roller Count: 9 | |
| Axle | Q235 | |
| Leg Frame (Main H-Frame) | Section Dimensions: 35*35 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | |
| Support Leg | Section Dimensions: 30*30 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | |
| Support Legs Length | 450-680/550-820/750-1200/900-1500 mm | Custom length available |
| Equipment Frame Steel | Thickness: ≥ 3.5mm Material: Q345 |
Accessories Parameters
| Parameter Name | Specification | Remarks |
| Reducer | 120 W | One reducer per 1.5 meters |
| Frequency Converter | 0.75/1.5/2.2 kW | Based on length configuration |
| Control Panel | Forward/Reverse Emergency Stop Speed Control | |
| Electrical Control Box | According to relevant national standards | |
| Rated Voltage | 380/220 V | |
| Drive Method | O-shaped belt | Wear-resistant |
| Caster | 4-inch Wheel width: 30 mm Wheel height: 120 mm | With full brake, meets load-bearing design requirements |
Other Parameters
| Parameter Name | Specification | Remarks | |
| Equipment electrical box and wiring | Using 1.5 square wires, parallel wiring | Requires standard wiring/leakage protection | |
| Conveyor Width and Weight | |||
| Width | Total Body Width | Effective Width | Weight/Section |
| 500mm | 655 mm | 500 mm | 31 kg |
| 600mm | 755 mm | 600 mm | 36 kg |
| 800mm | 955 mm | 800 mm | 41 kg |
Warranty
| Parameter Name | Specification |
| Frame Warranty Period | 12 Months |
| Belt Warranty Period | 6 Months |
