Gravity Skate Wheel Conveyors: The Lightweight, Flexible Solution for Your Warehouse

In the fast-paced world of warehouse operations, adaptability is key to maintaining efficiency. A gravity skate wheel conveyor offers an ingeniously simple solution when space constraints, temporary setups, or frequent reconfigurations are part of your daily challenges. These lightweight, expandable systems stand out for their remarkable 1:5 extension ratio, allowing warehouses to maximize operational reach while minimizing storage footprint. With no power requirements and effortless mobility, this style of flexible conveyor has become essential equipment for forward-thinking logistics operations that prioritize adaptability and cost-effectiveness.

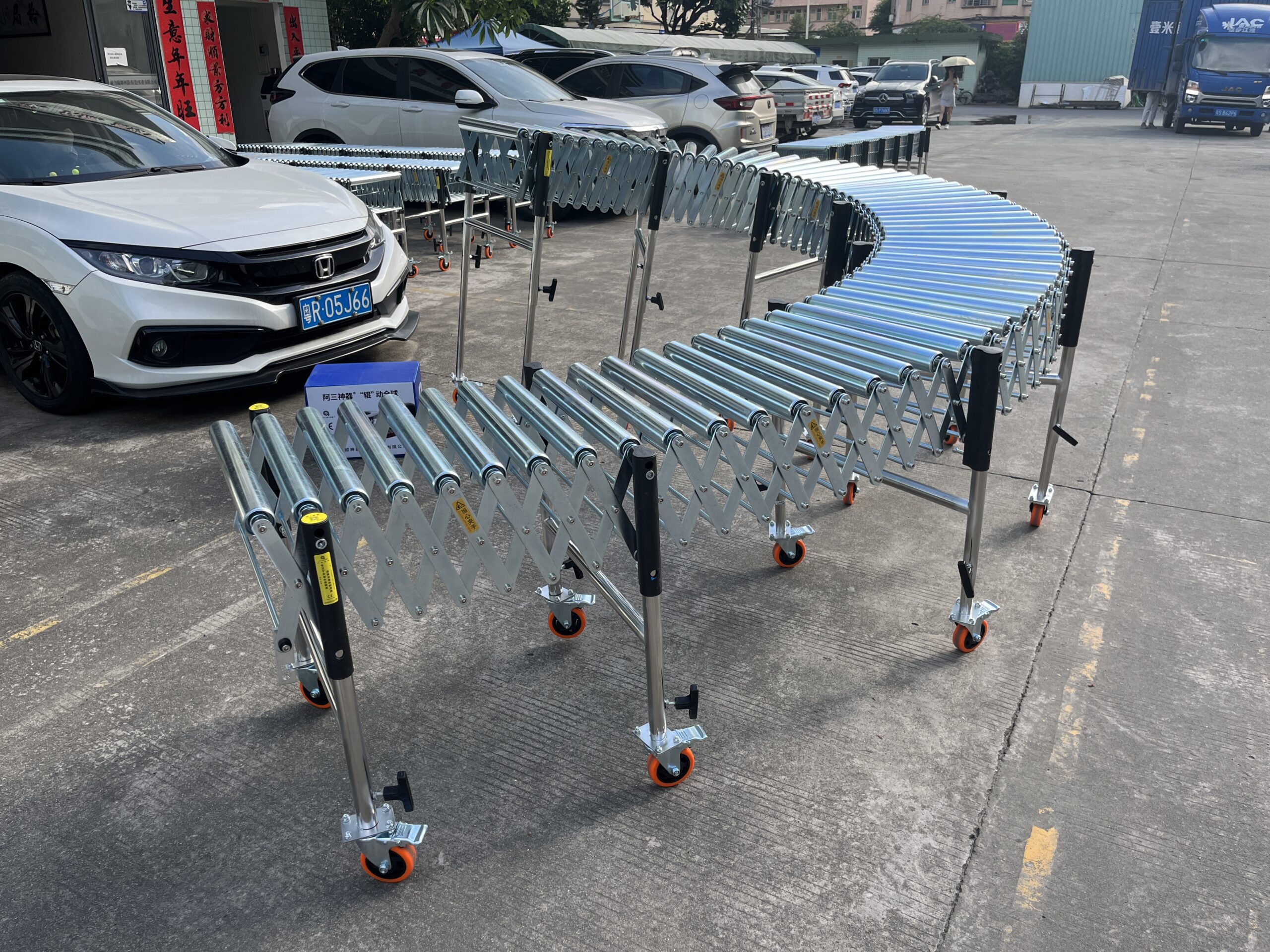

What Makes Skate Wheel Conveyors Different from Roller Conveyors?

While both roller conveyors and skate wheel conveyors serve similar purposes, their design differences create distinct advantages for specific applications.

Point Contact vs. Line Contact

The most fundamental difference is in how each system supports your products:

• Skate Wheel Conveyors: Utilize individual wheels that create point contacts with packages, resulting in less friction and easier movement, especially for lightweight items.
• Roller Conveyors: Provide continuous line contact with packages, offering more stable support for heavier or soft-bottomed items.

This point-contact design of skate wheel conveyors means they require less force to move packages, making them ideal for gravity-powered applications where packages need to travel with minimal resistance.

Weight and Portability

One of the standout benefits of the skate wheel conveyor design is its lightweight construction:

• Approximately 30% lighter than equivalent roller conveyors
• A typical 500mm wide section weighs only 14kg
• Easy for a single person to lift, move, and reposition

This remarkable portability transforms the conveyor from a fixed piece of infrastructure into a dynamic tool that can be rapidly deployed wherever it’s needed most.

Ideal Cargo Types

Skate wheel conveyors excel when handling:

• Cardboard boxes and cartons with flat, rigid bottoms
• Plastic containers and totes
• Hard-sided packages and parcels
• Standard mail packages
• Items weighing within the 50 kg/m capacity rating

However, they’re less suitable for soft packages, bags, or irregularly shaped items that might sag between the wheels.

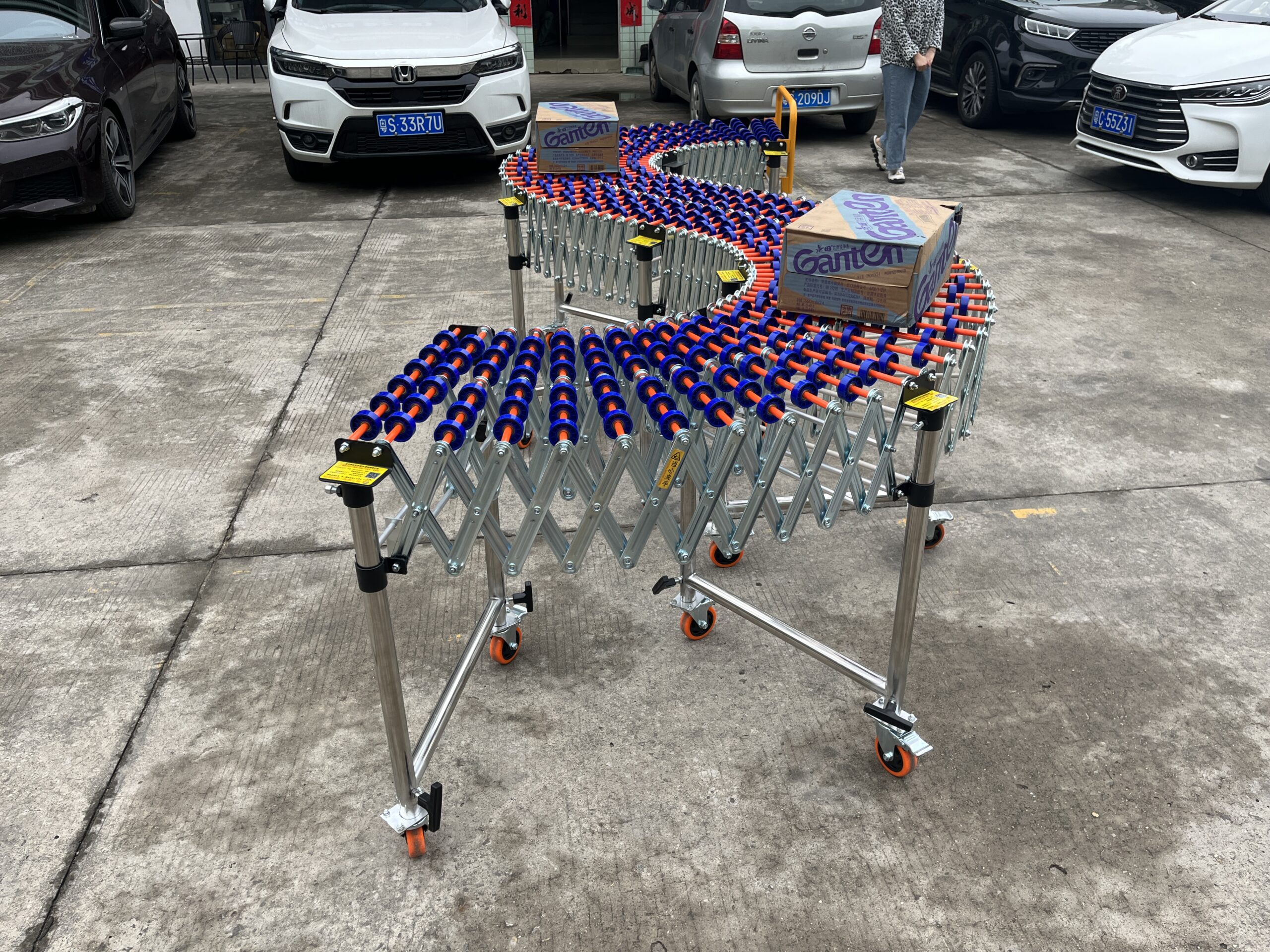

The Biggest Advantage: The 1:5 Expansion Ratio

Perhaps the most impressive feature of Naili’s accordion conveyor design is its extraordinary expansion capability.

When fully collapsed, a standard section measures just 420mm in length. When extended, that same section reaches 2100mm – a remarkable transformation that provides:

• A 1:5 expansion ratio (compared to the typical 1:3 ratio of roller conveyors)
• Minimal storage space requirements when not in use
• Maximum operational reach when deployed
• Flexibility to adjust length to precise needs

This exceptional space efficiency means you can store a 12-meter conveyor line in just 2.5 meters of space when collapsed. For operations with limited storage or frequently changing layout requirements, this feature alone makes the gravity skate wheel conveyor an invaluable asset.

Key Features of Naili’s Skate Wheel Conveyor

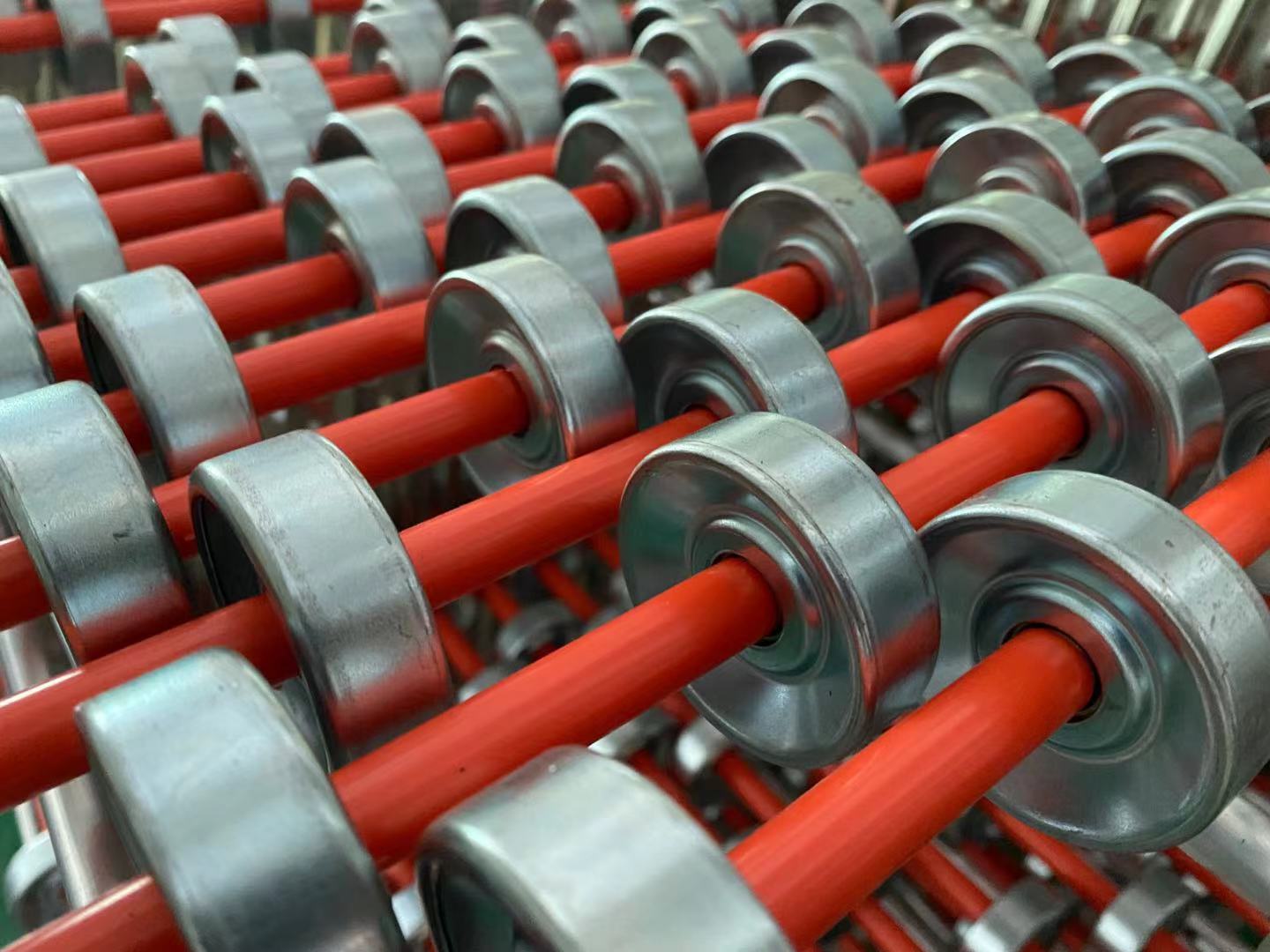

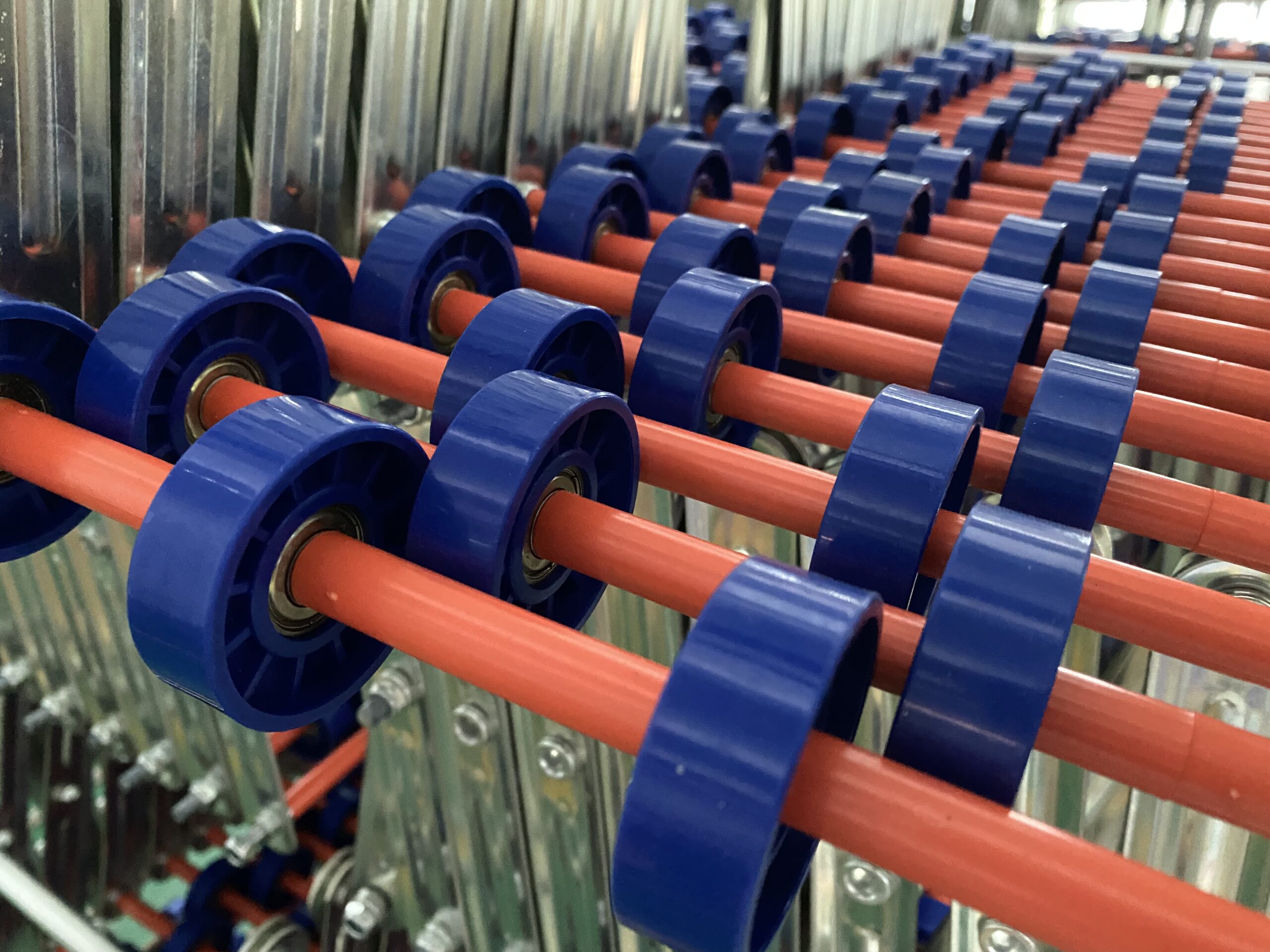

ABS Plastic vs. Galvanized Iron Wheels

Naili offers two wheel material options, each designed for specific operational needs:

Feature	ABS Plastic Wheels	Galvanized Iron Wheels
Weight	Lighter	Heavier, more stable
Durability	Good for standard use	Superior for high-volume operations
Noise Level	Quieter operation	Slightly louder
Recommended For	Standard operations (under 5000 packages/day)	High-volume operations (5000+ packages/day)
Replacement Cycle	More frequent	Longer service life

For operations processing 5000+ items daily with near-continuous use, the galvanized iron wheels provide the durability needed for sustained performance.

Lightweight Design for Easy Relocation

The portable conveyor design incorporates several key elements:

• Sturdy yet lightweight stainless steel frame
• 608 international standard bearings in each wheel
• Heavy-duty lockable casters for mobility
• Adjustable height support legs (450-680/550-820/750-1200/900-1500 mm ranges)
• Compact design when collapsed for easy storage

These features combine to create a system that can be quickly repositioned by warehouse staff without specialized equipment or training.

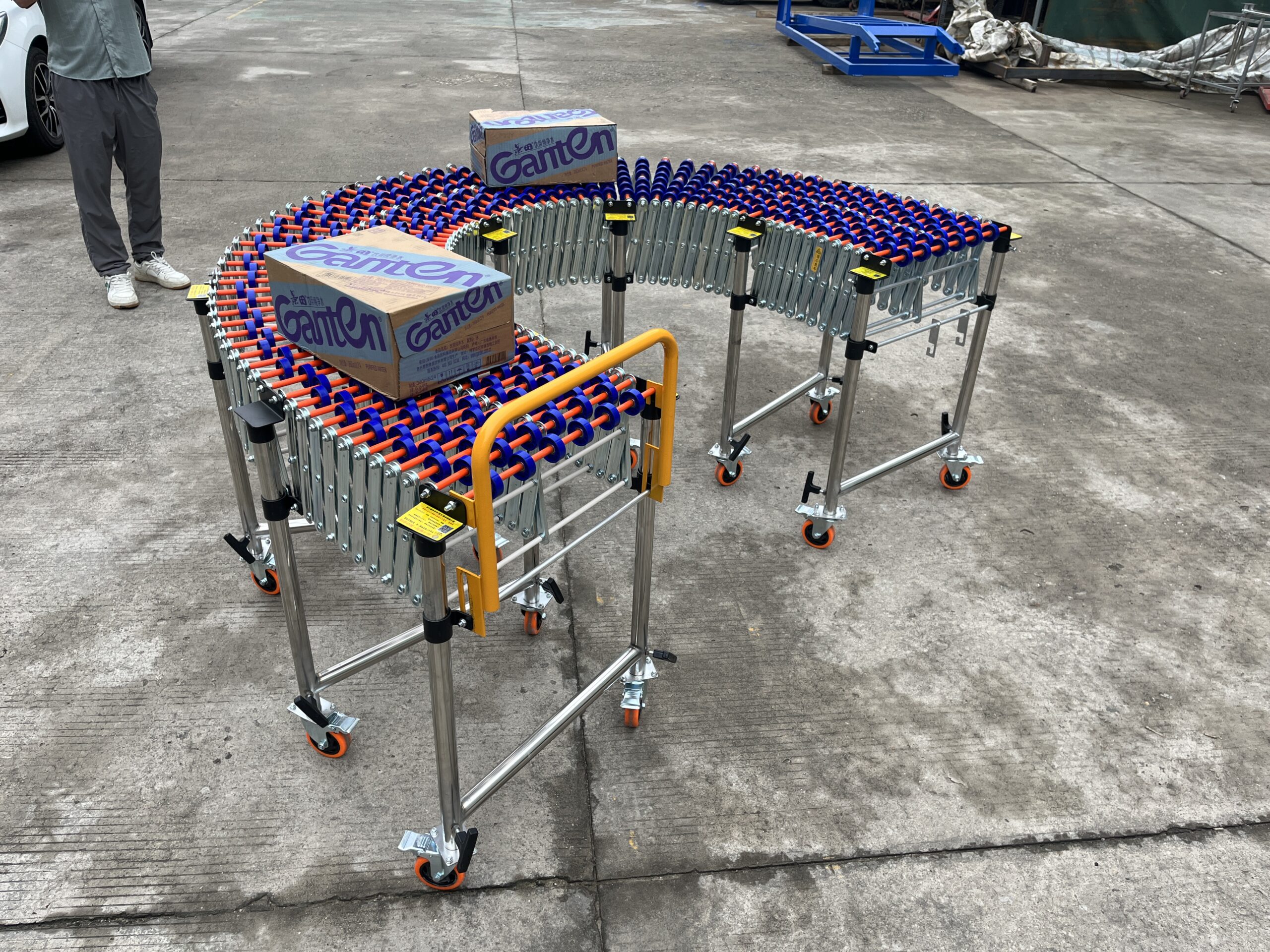

Modular Connection for Building Longer Lines

Naili’s skate wheel conveyors feature connecting hardware that allows multiple sections to be joined together to:

• Create longer straight runs
• Design custom conveyor paths with turns
• Build complex networks that adapt to your space
• Connect with existing conveyor systems

This modularity means you can start with a basic setup and expand as your needs change, making it a scalable solution for growing operations.

Common Use Cases

The unique flexibility of gravity skate wheel conveyors makes them particularly valuable in several key scenarios:

Temporary Setups for Seasonal Peaks

During holiday rushes, inventory clearances, or special promotions, additional processing capacity can be quickly deployed:

• Set up temporary packing stations
• Create additional sorting lines
• Extend existing systems to handle increased volume
• Disassemble and store when the rush subsides

The ability to expand capacity without permanent infrastructure changes helps operations manage seasonal variability cost-effectively.

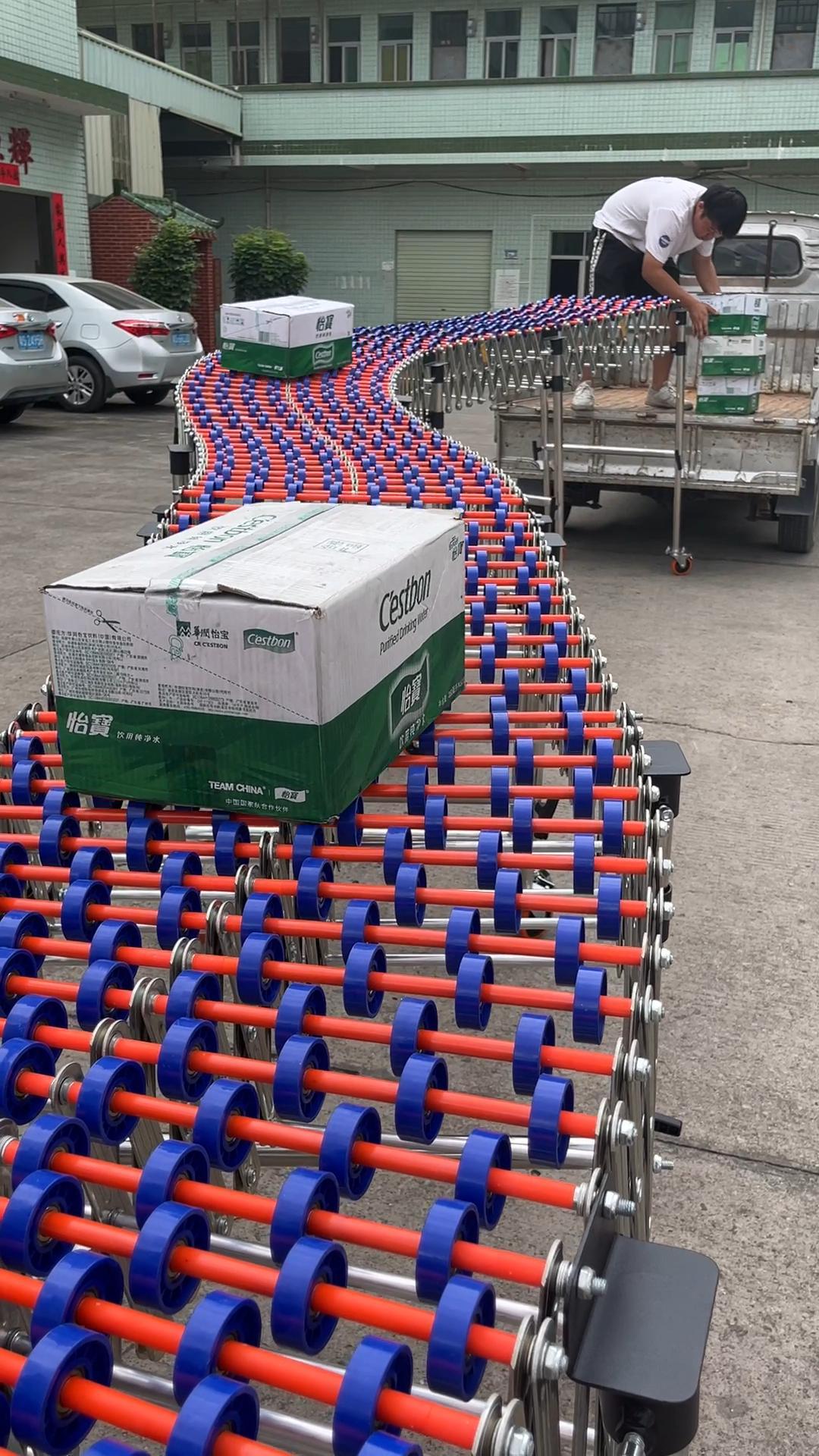

Truck Loading/Unloading in Tight Spaces

The compact nature of skate wheel conveyors makes them ideal for:

• Creating temporary loading/unloading paths in confined areas
• Extending deep into truck beds or containers
• Setting up quickly for unexpected deliveries
• Adapting to various truck heights with adjustable legs

When used with a hydraulic conveyor, skate wheel sections can reach deep into trailers from ground level, significantly speeding up the loading and unloading process even without a permanent dock.

Dynamically Connecting Different Warehouse Zones

Modern warehouses often need to adjust workflows as product mixes and volumes change:

• Quickly create paths between picking zones and packing areas
• Link receiving areas to temporary storage locations
• Connect quality control stations to shipping prep
• Bypass congested areas during peak times

This adaptability allows operations to optimize workflows in real-time rather than being constrained by fixed infrastructure.

Conclusion: Get Maximum Flexibility with Minimum Footprint

In a business environment where adaptability often determines success, the gravity skate wheel conveyor provides an elegant solution to many warehouse challenges. Its remarkable 1:5 expansion ratio, lightweight construction, and modular design make it an essential tool for operations that value flexibility and efficient space utilization.

Whether you’re dealing with seasonal peaks, varied loading scenarios, or frequently changing layouts, Naili’s skate wheel conveyors deliver the versatility modern warehouses need. By minimizing storage requirements while maximizing operational reach, these systems help you do more with less – the ultimate goal of any efficiency-focused operation.

Frequently Asked Questions

What is the weight capacity of a gravity skate wheel conveyor?

Naili’s gravity skate wheel conveyors have a capacity of 50 kg/m, meaning each meter of conveyor can support up to 50 kg of evenly distributed load.

Can skate wheel conveyors handle soft packages or bags?

No, they work best with flat-bottomed, rigid packages. Soft packages or bags may sag between the wheels and cause transportation issues.

How do I choose between ABS plastic and galvanized iron wheels?

Choose galvanized iron wheels for high-volume operations (5000+ packages daily) or heavy-duty applications. ABS plastic wheels are suitable for standard operations and offer quieter performance.

Can skate wheel conveyors be used outdoors?

They’re primarily designed for indoor use. For occasional outdoor use, choose galvanized iron wheels and ensure the conveyor is protected from extreme weather and stored indoors when not in use.

How steep of an incline can a gravity skate wheel conveyor handle?

Typically, 3-6 degrees is the optimal incline for gravity operation, slightly steeper than roller conveyors due to the lower friction of skate wheels.
