The Ultimate Guide to Telescopic Conveyors for Loading and Unloading

Loading and unloading goods from trucks and containers is a critical, yet often challenging, part of any logistics operation. Traditional methods can be slow, labor-intensive, and pose risks to both workers and products. A telescopic conveyor offers a powerful solution, streamlining the process to save time, cut costs, and improve overall dock safety. This guide will explore everything you need to know about these versatile machines and how Naili’s solutions can transform your workflow.

What is a Telescopic Conveyor?

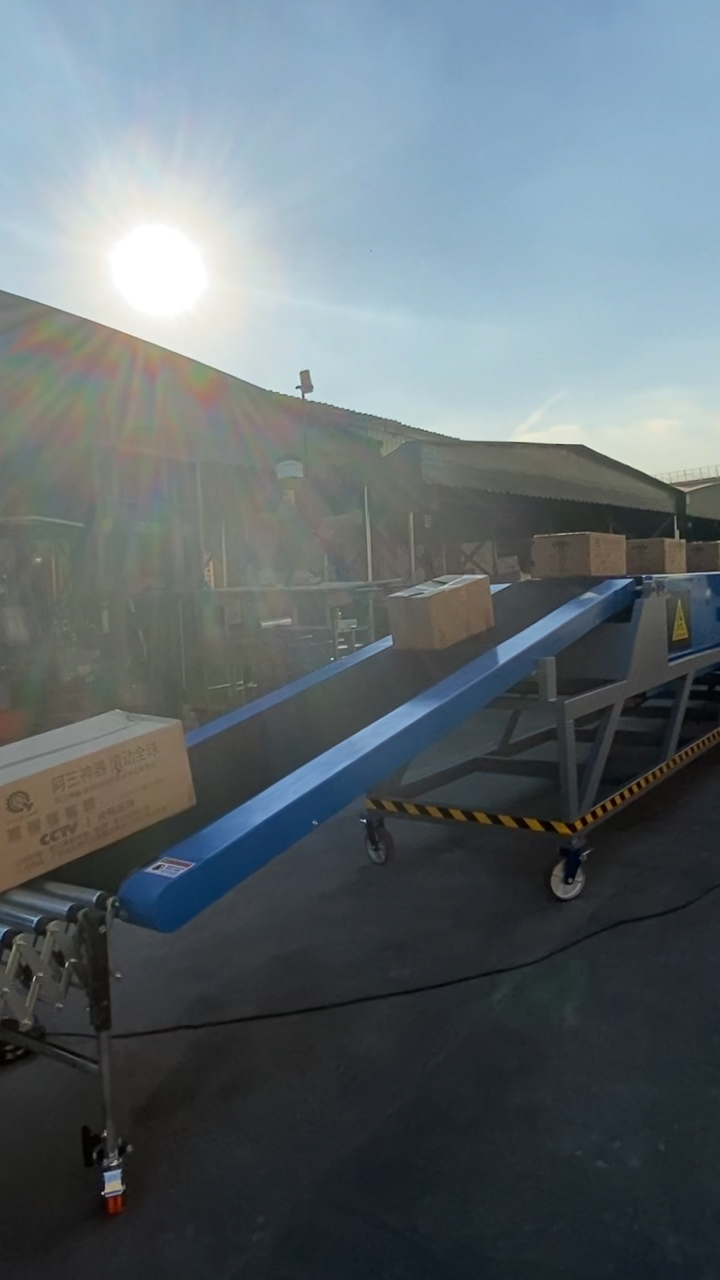

A telescopic conveyor, also known as an extendable conveyor or a truck loader conveyor, is a versatile material handling system designed to bridge the gap between a fixed conveyor line and the inside of a truck or container. Its key feature is a multi-stage design, where several conveyor sections, or booms, retract and extend like a telescope.

This allows operators to position the discharge point precisely where it’s needed, whether at the front or back of a trailer. As the truck is loaded or unloaded, the conveyor can be extended or retracted accordingly, eliminating the need for workers to carry heavy items over long distances inside the container. Naili offers robust models with multiple stages, ensuring a perfect fit for various operational scales.

Key Benefits: Why Your Logistics Center Needs One

Integrating a loading and unloading conveyor into your operations provides a significant return on investment through improved efficiency, safety, and cost savings.

Boosting Efficiency

Manual loading and unloading is a major bottleneck. A telescopic conveyor automates the movement of goods, dramatically increasing throughput. By bringing the conveyor’s end directly to the loading or unloading point, it minimizes walking and manual handling, allowing a single operator to move items weighing up to 60kg/m² quickly and continuously.

Based on customer feedback, a telescopic conveyor typically improves efficiency by 40-50% compared to fork truck operations and 20-30% compared to standard roller conveyors. This translates to more trucks processed per day and faster turnaround times.

Reducing Labor Costs and Worker Strain

The physical toll of manually lifting, carrying, and stacking boxes is immense. It leads to worker fatigue, repetitive strain injuries, and high employee turnover. A telescopic belt conveyor does the heavy lifting, reducing the physical demands on your team. This not only creates a safer work environment but also lowers labor costs by enabling a smaller team to handle a larger volume of goods.

Most operations can reduce labor requirements by 2-4 workers per loading area, representing significant ongoing savings while improving employee satisfaction and retention.

Minimizing Product Damage

Dropping packages is a common occurrence during manual handling, leading to costly product damage and returns. A telescopic conveyor provides a smooth, stable surface for goods to travel on, from the dock right into the truck. This controlled movement significantly reduces the risk of accidental drops and impacts, ensuring your products arrive at their destination in perfect condition.

Customers typically report an 80% reduction in product damage rates after implementing telescopic conveyor systems.

Naili’s Telescopic Conveyor Models: A Breakdown

Naili offers a range of telescopic conveyors to meet diverse operational needs, distinguished by the number of extendable stages. Choosing the right model depends on your dock configuration and the vehicle lengths you service.

For example, a 4-stage model like the NLS-4-8/17 (8m fixed length, 17m extension) is perfectly suited for reaching the front of a standard 40ft container, while a 3-stage unit like the NLS-3-6/8 is often sufficient for a 20ft container. Our team can help you assess your needs to select the most effective configuration.

Essential Features and Optional Add-ons

Naili’s telescopic conveyors come with a suite of standard features designed for performance and safety, plus a variety of optional add-ons for enhanced functionality.

Standard Features

• Bidirectional Controls: Buttons at both the operator and dock end allow for intuitive control of belt direction (in/out) and extension/retraction.
• Variable Speed Control: Adjust the belt speed to match the pace of your workers and the type of goods being handled, with speeds ranging from 10-40 m/min.
• Emergency Stop: E-stop buttons are placed at easily accessible points for immediate shutdown in case of an emergency.
• Robust Construction: Built with high-quality materials (3mm PVK anti-impact composite belt with steel hook joints) to withstand the rigors of a busy loading dock environment.

Optional Add-ons

• Hydraulic Lift: Allows for easy vertical adjustment of the conveyor’s height to match different truck bed heights.
• Operator Platform: A platform that moves with the conveyor, allowing the operator to comfortably work at height when stacking goods.
• LED Lighting: Bright, energy-efficient lights mounted at the operator end to illuminate the inside of dark trailers, improving safety and accuracy.
• Remote Control: A wireless remote gives the operator freedom to move around while controlling the conveyor’s functions.

Additional options include counters for tracking throughput, top-mounted scanners for barcode reading, and end ramps for installations without loading docks.

Is a Telescopic Conveyor Right for You?

While highly beneficial, a telescopic conveyor is best suited for specific environments. Consider investing in an extendable conveyor if your facility matches these profiles:

• High-Volume Distribution Centers: Facilities that load or unload dozens of trucks daily will see the most dramatic improvements in throughput and efficiency.
• Large Retail & E-commerce Hubs: Operations dealing with a constant flow of parcels and boxes of varying sizes are ideal candidates.
• 3PL and Logistics Companies: Any business where dock efficiency is directly tied to profitability will benefit from the speed and reliability of a truck loader conveyor.

For smaller operations with lower volume (handling fewer than 200 packages daily), other solutions like a gravity roller conveyor or a powered roller conveyor might be more suitable. It’s important to note that due to design and safety protocols, Telescopic Conveyors cannot be used in conjunction with Hydraulic Conveyors.

Conclusion: Revolutionizing Your Dock Operations with Naili Conveyor

In today’s fast-paced logistics landscape, efficiency at the loading dock is non-negotiable. A Naili telescopic conveyor is more than just a piece of equipment; it’s a strategic investment in productivity, safety, and operational excellence. By automating the most strenuous part of the loading and unloading process, you empower your team, protect your products, and prepare your business for future growth.

For operations handling over 1000 packages daily, these systems typically achieve return on investment within 6-12 months through labor savings and efficiency improvements, making them a smart financial decision as well as an operational upgrade.

Frequently Asked Questions

What is the maximum weight a telescopic conveyor can handle?

Naili’s telescopic conveyors have a load capacity of 60 kg/m², meaning each square meter of belt can support up to 60kg of evenly distributed weight.

Can the conveyor belt run in both directions?

Yes, all our models feature bidirectional controls, allowing for both loading and unloading operations with the same equipment.

How do I choose the right length for my needs?

The ideal length depends on the vehicles you service. We recommend 3-stage models for 20ft containers and 4-stage models for 40ft containers. Our experts can provide a detailed assessment based on your specific requirements.

Is it difficult to operate?

No, the controls are intuitive and designed for ease of use. Basic training is all that’s required for an operator to become proficient. No specialized qualifications are needed.

What safety features are included?

Standard safety features include easily accessible emergency stop buttons, front-end collision protection, and optional add-ons like LED lighting to enhance safety in dark trailers.
