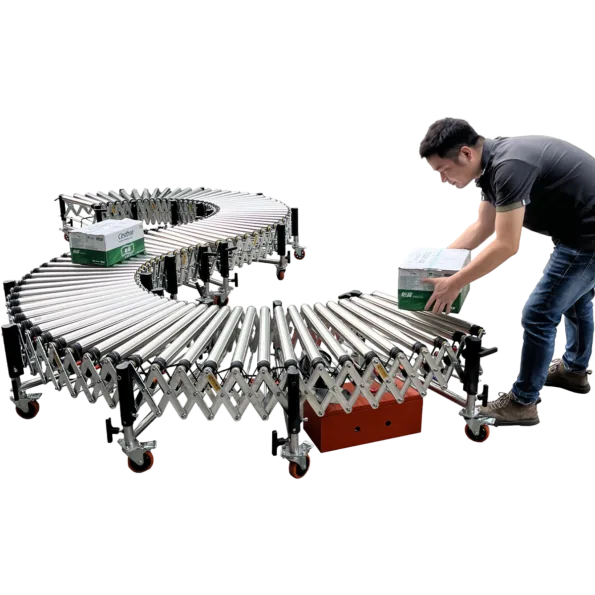

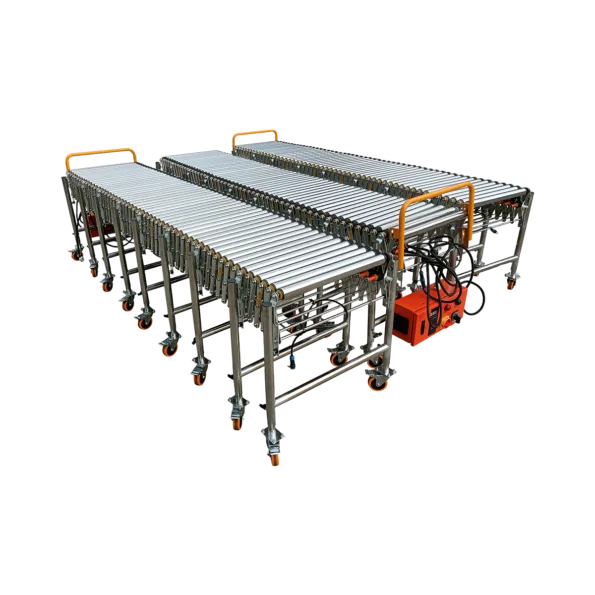

The Powered Roller Conveyor – Multi-wedge Belt Driven – 3000 mm/Section is a flexible and durable conveyor with a load capacity of 80 kg/m and a speed of 40 m/min. It features a multi-wedge belt drive, expandable length (from 1050 mm to 3000 mm), and height-adjustable legs. Made with stainless steel rollers, it provides smooth and reliable operation, ideal for businesses needing a space-saving, high-performance solution for handling loads efficiently.
Powered Roller Conveyor – Multi-wedge Belt Driven – 3000 mm/Section
Propduct Model
Current Model
Key Parameters
Minimun Speed
0
m/min
Maximun Speed
40
m/min
Load Capacity
80
kg/m²
Machine Length
Collapsed Length
1050
mm
Extended Length
3000
mm
Height Options
| Minimum Height | Maximum Height |
|---|---|
| 450 | 800 |
| 550 | 900 |
| 750 | 1100 |
| 900 | 1200 |

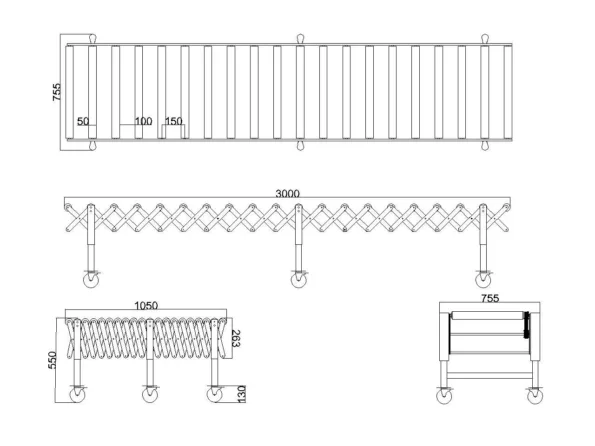

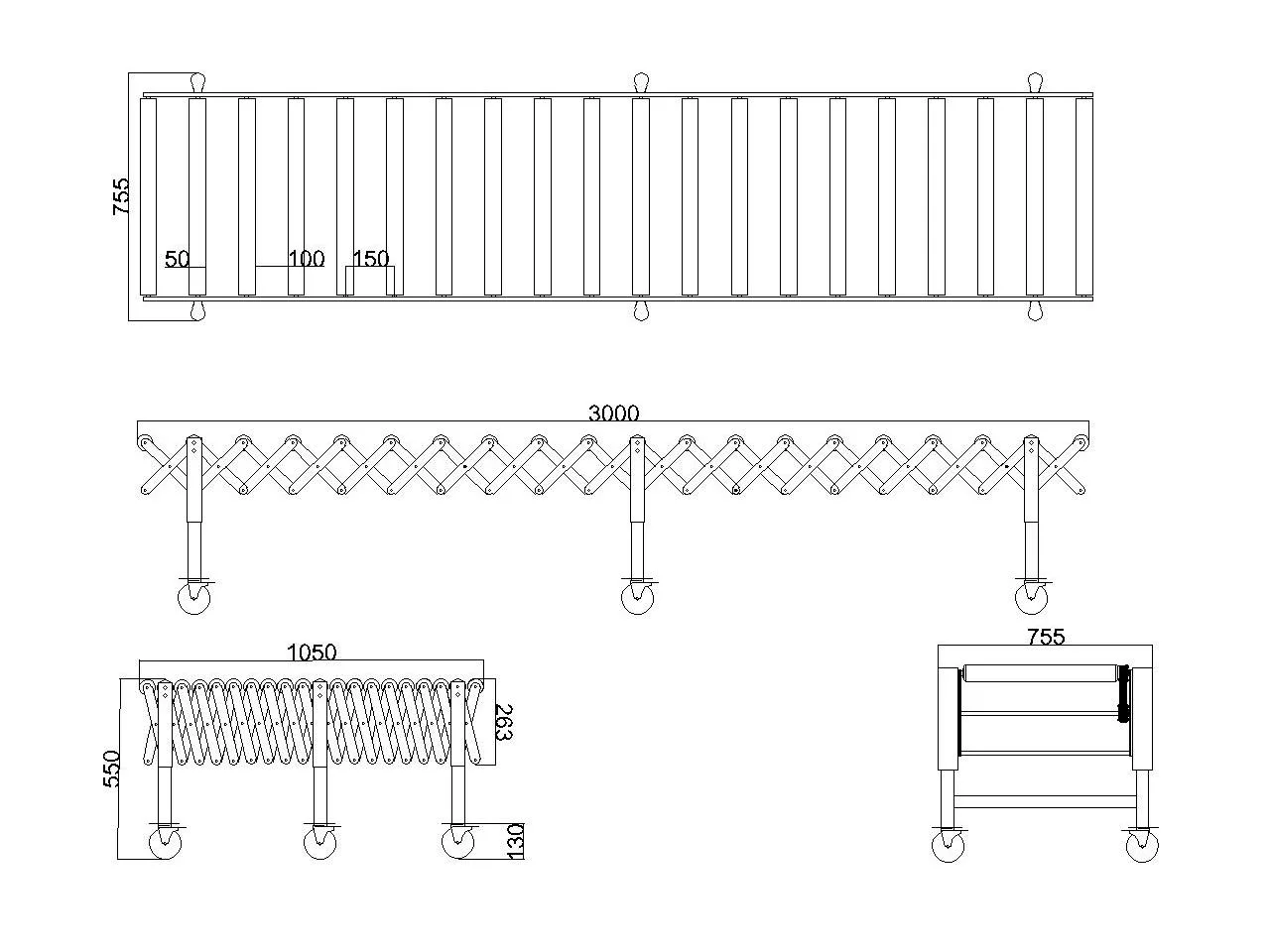

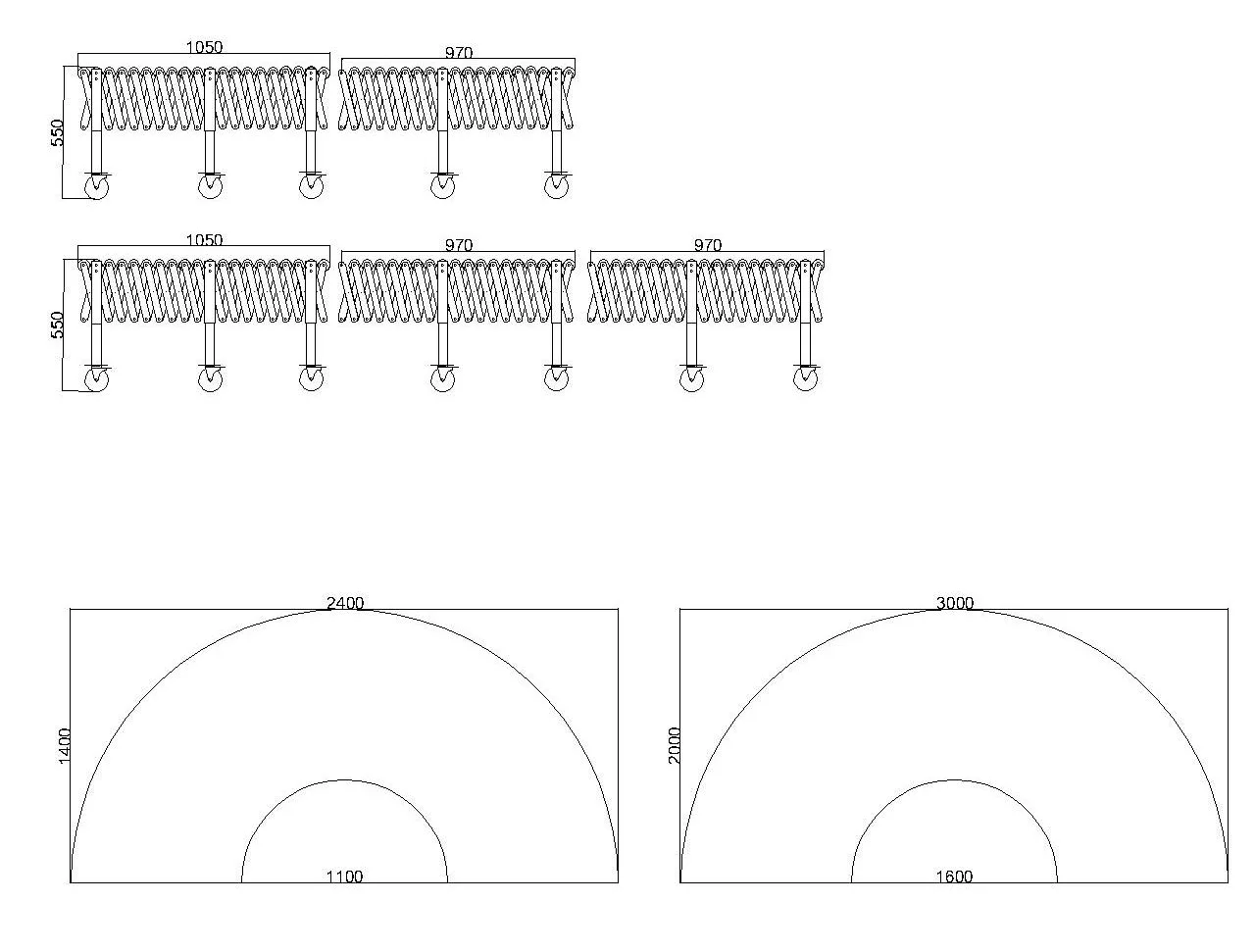

Dimension Drawing
Equipment Parameters
| Parameter Name | Specification | Remarks |
| Overall Machine Length | Collapsed: 1050 mm Extended: 3000 mm | |
| Extension Ratio | 1:3 | |
| Load Capacity | 80 kg/m | |
| Speed | 40 m/min | |
| Width | 500/600/800 mm | |
| Roller | Diameter: 50 mm Thickness: ≥1.5 mm Material: Galvanized/201 Stainless Steel Standard Section Roller Count: 10 Expanding Section Roller Count: 9 Roller Gap: 100 mm | |
| Axle | Q235 | |
| Leg Frame (Main H-Frame) | Section Dimensions: 35*35 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | |
| Support Leg | Section Dimensions: 30*30 mm Thickness: ≥ 1.3 mm Material: 201 Stainless Steel | Height Adjustable |
| Support Legs Length | 450-680/550-820/750-1200/900-1500 mm | Custom length available |
| Equipment Frame Steel | Thickness: ≥ 3.5mm Material: Q345 |
Accessories Parameters
| Parameter Name | Specification | Remarks |
| Reducer | 120 W | One reducer per 2 meters |
| Frequency Converter | 0.75/1.5/2.2 KW | Based on length configuration |
| Control Panel | Forward/Reverse/Emergency Stop/Speed Control | |
| Electrical Control Box | According to relevant national standards | |
| Rated Voltage | 380/220 V | |
| Drive Method | Multi-wedge belt | Wear-resistant |
| Caster | 4-inch Wheel width: 30 mm Wheel height: 120 mm | With full brake, meets load-bearing design requirements |
Other Parameters
| Parameter Name | Specification | Remarks | |
| Equipment electrical box and wiring | Using 1.5 square wires, parallel wiring | Requires standard wiring/leakage protection | |
| Product Dimensions | |||
| Width | Total Body Width | Effective Width | Weight/Section |
| 500mm | 655 mm | 500 mm | 60 kg |
| 600mm | 755 mm | 600 mm | 70 kg |
| 800mm | 955 mm | 800 mm | 80 kg |
Warranty
| Parameter Name | Specification |
| Frame Warranty Period | 12 Months |
| Belt Warranty Period | 6 Months |
